Part #: 100G-QSFP28-SR4 100G-QSFP28-SR4-EXT
100G-QSFP28-SR4-IND
Form Factor: QSFP28
TX Wavelength: 850nm
Reach: 100m
Cable Type: MMF
Rate Category: 100GBase
Interface Type: SR4
DDM: Yes
Connector Type: MPO Optical Power Budget: 2.3 dB
TX Power Min/Max: -8.0 to +2.4 dBm RX Power Min/Max: -10.3 to +2.4 dBm
Brocade-Foundry Compatible 100G-QSFP28-SR4 Features:
4 independent full-duplex channels
Up to 28Gbps data rate per channel
QSFP28 MSA compliant
Up to 100m over OM4 MMF transmission
Up to 70m over OM3 MMF transmission
Single 3.3V power supply
Maximum power consumption 3.5W
MTP/MPO optical connector
RoHS-6 compliant
Operating Case Temperature
Standard 0 to +70 °C
Extended -4 to +85 °C
Industrial -40 to +85 °C
•
Brocade-Foundry Compatible 100G-QSFP28-SR4 Applications:
Data Center, Rack to rack
Infiniband QDR, DDR and SDR
100G Ethernet
Brocade-Foundry Compatible 100G-QSFP28-SR4 Overview
The 100G-QSFP28-SR4 is a parallel 100 Gbps Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent
transmit and receive channels, each capable of 25 Gbps operation for an aggregate data rate of 100 Gbps on 100 meters of OM4 multi-mode fiber. An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be
twisted for proper channel to channel alignment. The module operates by a single +3.3V power supply. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi- Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface
Parameter | Symbol | Min | Max | Unit |
Storage Temperature | Ts | -40 | +85 | °C |
Operating Case Temp (Standard) | TOP | 0 | 70 | °C |
Operating Case Temp (Industrial) | TOP | -40 | 85 | °C |
Power Supply Voltage | Vcc | -0.5 | 3.6 | V |
Relative Humidity (non- condensation) | RH | 5 | 85 | % |
Damage Threshold, each lane | THd | 3.4 | dBm |
Brocade-Foundry Compatible 100G-QSFP28-SR4 Specifications Absolute Maximum Ratings
Recommended Operating Conditions
Parameter | Symbol | Min | Typ | Max | Unit |
Power Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V |
Data Rate, each Lane | 25.78125 | Gb/s | |||
Control Input Voltage High) | 2 | Vcc | V | ||
Control Input Voltage Low | 0 | 0.8 | V | ||
Link Distance with G.652 | D | 100 | m |

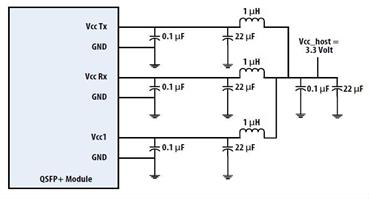

Recommended Power Supply Filter
Electrical Characteristics
Parameter | Symbol | Min | Typ | Max | Unit |
Power Consumption, each Terminal | 3.5 | W | |||
Supply Current, each Terminal | Icc | 1060 | mA | ||
Transceiver Power-on Initialization Time | 2000 | ms |
Electrical Characteristics-Transmitter (each lane)
Parameter | Symbol | Min | Typ | Max | Unit | Notes |
Differential Input Voltage Swing | Vin,pp | 150 | 1050 | mVpp | ||
Differential Input Impedance | Zin | 85 | 105 | 110 | Ohm |
Electrical Characteristics-Receiver (each lane)
Parameter | Symbol | Min | Typ | Max | Unit | Notes |
Differential Output Voltage Swing | Vout,pp | 200 | 1100 | mVpp | ||
Differential Output Impedance | Aout | 85 | 100 | 115 | Ohm |
Optical Characteristics-Transmitter
Parameter | Symbol | Min | Typ | Max | Unit | Notes |
Signalling Speed per Lane | 25.78 | Gbps | ||||
Centre Wavelength | λ0 | 840 | 850 | 860 | nm | |
RMS Spectral Width | ∆λrms | 0.6 | nm | |||
Average Launch Power (each Lane) | PAVG | -9.1 | 2.4 | dBm | ||
Optical Modulation Amplitude (OMA) (each Lane) | POMA | +4 | dBm | |||
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane | -8.0 | dBm | ||||
Extinction Ratio | ER | 3.0 | dB | |||
Optical Return Loss Tolerance | TOL | 12 | dB | |||
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} | IEEE 802.3bm 100Gbase- SR4 | |||||
Average Launch Power OFF (each Lane) | Poff | -30 | dBm | |||
Note: Transmitter optical characteristics are measured with a multimode fiber
Optical Characteristics-Receiver
Parameter | Symbol | Min | Typ | Max | Unit | Notes |
Signaling Speed per Lane | 25.78 | Gbps | ||||
Centre Wavelength | λ0 | 840 | 850 | 860 | nm | |
Damage Threshold (each Lane) | Thd | 3.4 | dBm | 3 | ||
Average Receive Power (each Lane) | -10.3 | +2.4 | dBm | |||
Receiver Reflectance | RR | -12 | dB | |||
Stressed Receiver Sensitivity (OMA), each Lane | -5.2 | dBm | 4 | |||
LOS Assert | LOSA | -20 | dBm | |||
LOS Deassert | LOSD | -12 | dBm | |||
LOS Hysteresis | LOSH | 0.5 | dB |
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
Parameter | Symbol | Min | Typ | Max | Unit | Notes |
Temperature monitor absolute error | DMITEMP | -3 | 3 | deg. C | Over operating temperature range | |
Supply voltage monitor absolute error | DMIVCC | -0.1 | 0.1 | V | Over Full operating range | |
Channel RX power monitor absolute error | DMIRX_CH | -2 | 2 | dB | 1 | |
Channel Bias current monitor | DMIIbias_CH | -10% | 10% | mA | ||
Channel TX power monitor absolute error | DMITX_CH | -2 | 2 | dB | 1 |

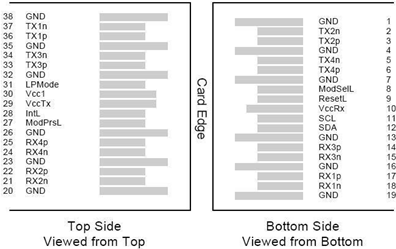

PIN Assignment and Function Definitions
PIN Definition
PIN | Signal Name | Description |
1 | GND | Ground (1) |
2 | Tx2n | CML-I Transmitter 2 Inverted Data Input |
3 | Tx2p | CML-I Transmitter 2 Non-Inverted Data Input |
4 | GND | Ground (1) |
5 | Tx4n | CML-I Transmitter 4 Inverted Data Input |
6 | Tx4p | CML-I Transmitter 4 Non-Inverted Data Input |
7 | GND | Ground (1) |
8 | ModSelL | LVTLL-I Module Select |
9 | ResetL | LVTLL-I Module Reset |
10 | VCCRx | +3.3V Power Supply Receiver (2) |
11 | SCL | LVCMOS-I/O 2-Wire Serial Interface Clock |
12 | SDA | LVCMOS-I/O 2-Wire Serial Interface Data |
13 | GND | Ground (1) |
14 | Rx3p | CML-O Receiver 3 Non-Inverted Data Output |
15 | Rx3n | CML-O Receiver 3 Inverted Data Output |
16 | GND | Ground (1) |
17 | Rx1p | CML-O Receiver 1 Non-Inverted Data Output |
18 | Rx1n | CML-O Receiver 1 Inverted Data Output |
19 | GND | Ground (1) |
20 | GND | Ground (1) |
21 | Rx2n | CML-O Receiver 2 Inverted Data Output |
22 | Rx2p | CML-O Receiver 2 Non-Inverted Data Output |
23 | GND | Ground (1) |
24 | Rx4n | CML-O Receiver 4 Inverted Data Output |
25 | Rx4p | CML-O Receiver 4 Non-Inverted Data Output |
26 | GND | Ground (1) |
27 | ModPrsL | Module Present |
28 | IntL | Interrupt |
29 | VCCTx | +3.3V Power Supply Transmitter (2) |
30 | VCC1 | +3.3V Power Supply |
31 | LPMode | LVTLL-I Low Power Mode |
32 | GND | Ground (1) |
33 | Tx3p | CML-I Transmitter 3 Non-Inverted Data Input |
34 | Tx3n | CML-I Transmitter 3 Inverted Data Input |
35 | GND | Ground (1) |
36 | Tx1p | CML-I Transmitter 1 Non-Inverted Data Input |
37 | Tx1n | CML-I Transmitter 1 Inverted Data Input |
38 | GND | Ground (1) |
Notes:
All Ground (GND) are common within the QSFP+ module and all module voltages are referenced to this potential unless noted otherwise. Connect these directly to the host board signal common ground plane.
VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. The connector pins are each rated for a maximum current of 500mA.
Licensing
The following U.S. patents are licensed by Finisar to FluxLight, Inc.:
U.S. Patent Nos: 7,184,668, 7,079,775, 6,957,021, 7,058,310, 6,952,531, 7,162,160, 7,050,720
