Cisco Compatible SFP-10/25G-CSR-S Quick Spec:
Part Number: SFP-10/25G-CSR-S-FL
SFP-10/25G-CSR-S-EXT-FL SFP-10/25G-CSR-S-IND-FL
Form Factor: SFP28 TX Wavelength: 850nm Reach: 300m
Cable Type: MMF Rate Category: 10/25G Interface Type: CSR DDM: Yes
Connector Type: Dual-LC
Cisco Compatible SFP-10/25G-CSR-S Features
Support data rate up to 25.78Gbps
850nm VCSEL
I2C interface with DDM
Positive power supply lines: 3.3 V
Up to 300m over MMF OM3 with FEC
Power consumption (Each End) : <1W
RoHS 6 compliant
Multimode operation
Operating Case Temperature
Standard: 0℃ to +70℃
Extended: -5℃ to 85℃
Industrial: -40℃ to +85℃
Cisco Compatible SFP-10/25G-CSR-S Applications
10G/25GBASE-CSR
Other Optical links
Product Description
The FluxLight SFP-10/25G-CSR-S is SFP28 module for duplex optical data, communications up to 25.78Gb/s. It is with the SFP28 20-pin connector to allow hot plug capability; Digital diagnostic functions are available via an I2C. It has built-in clock and data recovery (CDR). This module is designed for multi-mode fiber and operates at a nominal wavelength of 850nm. The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1, laser compliant according to International Safety Standard IEC 60825. The receiver section uses, an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
ABSOLUTE MAXIMUM RATINGS
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
Parameter | Symbol | Min | Max | Unit | Notes |
Storage Temperature | TS | -40 | 85 | degC | |
Operating Case Temperature - Commercial | TOP | 0 | 70 | degC | |
Operating Case Temperature – Extended | TOP | -5 | 85 | degC | |
Operating Case Temperature - Industrial | TOP | -40 | 85 | degC | |
Power Supply Voltage | VCC | -0.3 | 3.6 | V | |
Relative Humidity (non-condensation) | RH | 5 | 85 | % | |
Damage Threshold, each Lane | THd | -3 | dBm |
RECOMMENDED OPERATING CONDITIONS
Parameter | Symbo l | Min | Typical | Max | Unit | Notes |
Operating Case Temperature - Commercial | TOP | 0 | 70 | degC | ||
Operating Case Temperature – Extended | TOP | -5 | 85 | degC | ||
Operating Case Temperature - Industrial | TOP | -40 | 85 | degC | ||
Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
Data Rate, | 25.78125 | Gb/s | ||||
Data Rate Accuracy | -100 | 100 | ppm | |||
Tx_DISABLE Input Voltage –High | 2 | V | ||||
Tx_DISABLE Input Voltage – Low | 0.8 | V |
Electrical and Optical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes |
Power Consumption | 1.0 | W | ||||
Supply Current | Icc | 300 | mA | |||
Transmitter | ||||||
Centre Wavelength | λC | 840 | 850 | 860 | nm | |
Spectral Width(RMS) | Δλ | 0.6 | nm | |||
Average Output Power | Pout | -8.4 | 2.4 | dBm | ||
Extinction Ratio | ER | 2 | dB | |||
Receiver | ||||||
Centre Wavelength | λC | 840 | 850 | 860 | nm | |
Average Receiver Power | Pin | -10.3 | 2.4 | dBm | ||
Unstressed receiver sensitivity, each lane | Sen | -7.2 | dBm | 1 | ||
Optical Return Loss | ORL | -12 | At 1MHz | |||
LOS De-Assert | LOSD | -13 | dB | |||
LOS Assert | LOSA | -30 | dB | |||
LOS Hysteresis | 0.5 | dB | ||||
1. BER=5E-5 Measured with RPBS 2^31-1 test pattern @25.78Gbs
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
Parameter | Symbol | Min | Max | Unit |
Temperature monitor absolute error | DMI_Temp | -5 | 5 | ℃ |
Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA |
Channel TX power monitor absolut error | DMI_TX_Ch | -3 | 3 | dB |

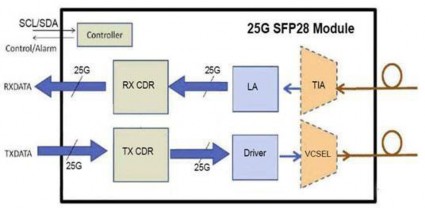

Block Diagram
Pin Assignment and Description

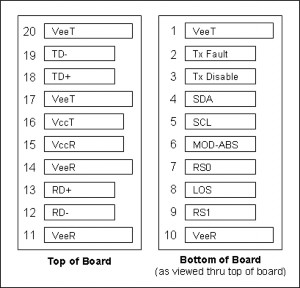

Pin Assignment
Pin | Signal Name | Description | Plug Seq. | Notes |
1 | VEET | Transmitter Ground | 1 | |
2 | TX FAULT | Transmitter Fault Indication | 3 | |
3 | TX DISABLE | Transmitter Disable | 3 | |
4 | SDA | SDA Serial Data Signal | 3 | |
5 | SCL | SCL Serial Clock Signal | 3 | |
6 | MOD_ABS | Module Absent. Grounded within the module | 3 | |
7 | RS0 | Not Connected | 3 | |
8 | LOS | Loss of Signal | 3 | |
9 | RS1 | Not Connected | 3 | |
10 | VEER | Receiver ground | 1 | |
11 | VEER | Receiver ground | 1 | |
12 | RD- | Inv. Received Data Out | 3 | |
13 | RD+ | Received Data Out | 3 | |
14 | VEER | Receiver ground | 1 | |
15 | VCCR | Receiver Power Supply | 2 | |
16 | VCCT | Transmitter Power Supply | 2 | |
17 | VEET | Transmitter Ground | 1 | |
18 | TD+ | Transmit Data In | 3 | |
19 | TD- | Inv. Transmit Data In | 3 | |
20 | VEET | Transmitter Ground | 1 |

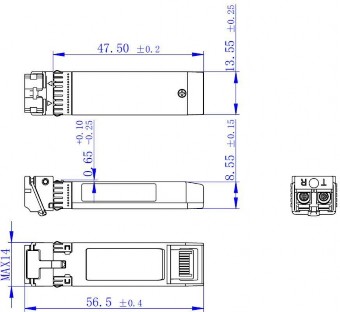

Mechanical Dimensions
ESD
This transceiver is specified as ESD threshold 1kV for SFI pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Laser Safety
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
Licensing
The following U.S. patents are licensed by Finisar to FluxLight, Inc.:
U.S. Patent Nos: 7,184,668, 7,079,775, 6,957,021, 7,058,310, 6,952,531, 7,162,160, 7,050,720
