QFX-SFP-DAC-1M-FL, Juniper QFX-SFP-DAC-1M Compatible 10G SFP+ to SFP+ Passive DAC Cable, 1m (3.3ft)Loading...
Arista Compatible
CAB-SFP-SFP-1M-A-FL Arista CAB-SFP-SFP-1M Compatible 10G SFP+ to SFP+ Passive DAC Cable, 1m (3.3ft)
- Guaranteed compatible with Arista
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 10G
- Data Rate
- 10Gb/
s per channel - Standard / Protocol
- SFP+ MSA (SFF-8431)
- Cable Class
- Passive DAC (twinax copper)
- Connector A
- SFP+
- Connector B
- SFP+
- AWG
- 30 AWG
- Length
- 1m
- DDM
- Not supported (passive)
Overview

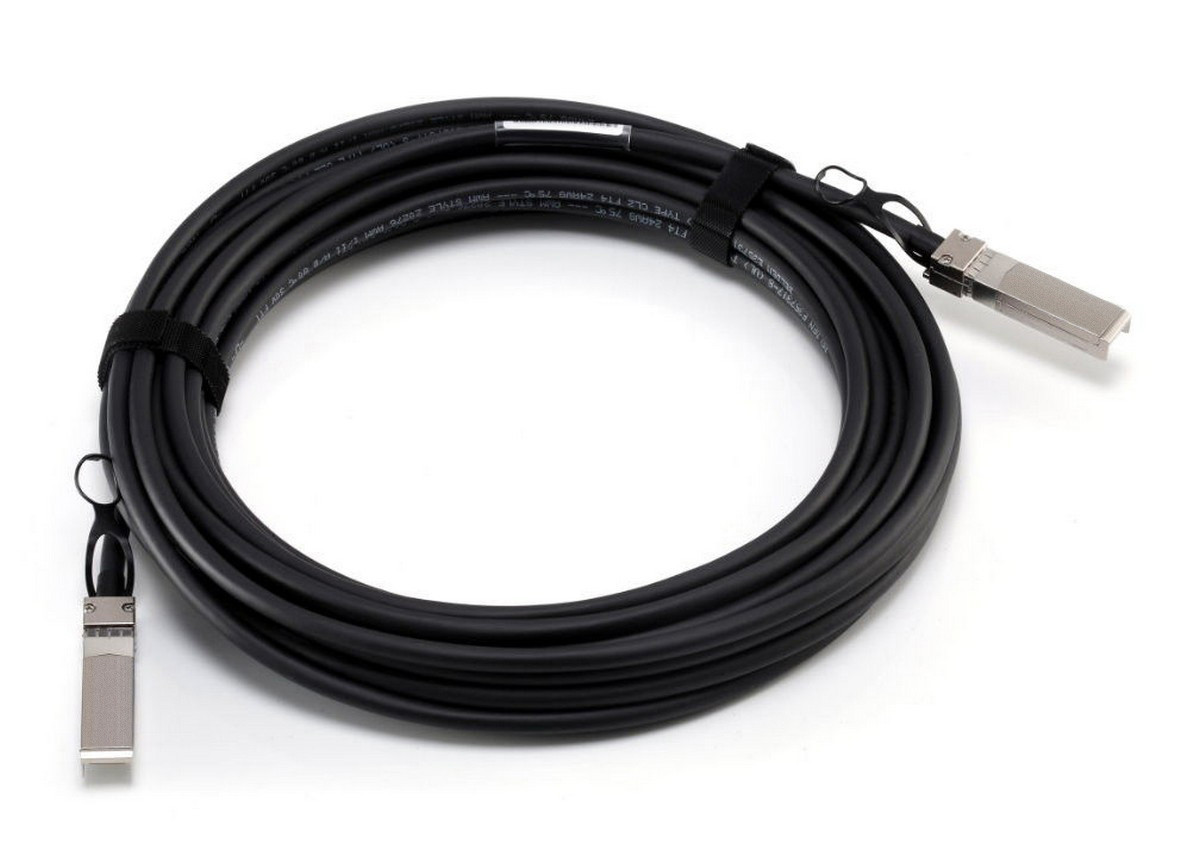

The FluxLight CAB-SFP-SFP-1M-A-FL is an Arista CAB-SFP-SFP-1M compatible 10G SFP+ passive direct attach copper (DAC) cable, 1m (3.3 ft) long. It joins two SFP+ ports for 10 Gigabit Ethernet between switches, servers and storage in the same or the next rack.
Both ends of the CAB-SFP-SFP-1M-A-FL are coded for Arista, and it works in any Arista switch port that takes the CAB-SFP-SFP-1M, which Arista certifies on all its platforms. Platform Support has the details.
It is built to the SFP+ MSA (SFF-8431) and is passive: the cable has no electronics to boost the signal, which keeps cost and latency low on short links. It uses 30 AWG twinax copper.
FluxLight guarantees it is compatible with Arista and covers it with a 10-year warranty.
Applications
- 10 Gigabit Ethernet
- Short-reach in-rack and adjacent-rack links between switches, servers and storage
Features
- Compliant with SFF-8431 (SFP+ MSA)
- 10 Gb/s per channel transmission
- Passive twinax copper, 30 AWG, 1 m
- EEPROM in cable assembly for identification
- Optimized PCB with automated soldering process
- Stamped EMI ground finger
- Pull-to-release unlatching
- RoHS compliant
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Cable Specifications
| Parameter | Value |
|---|---|
| Connector A | SFP+ |
| Connector B | SFP+ |
| Cable type | Passive twinax copper |
| Conductor gauge | 30 AWG |
| Cable length | 1 m |
| Differential impedance | 100 Ω (typical) |
High Speed Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Differential Impedance | TDR | 90 | 100 | 110 | Ω | |
| Insertion loss | SDD21 | -17.04 | dB | At 5.15625 GHz | ||
| Differential Return Loss | SDD11 SDD22 | See Note 1 | dB | At 0.05 to 4.1 GHz | ||
| See Note 2 | dB | At 4.1 to 11.1 GHz | ||||
| Differential to common-mode return loss | SCD11 SCD22 | -10 | dB | At 0.2 to 11.1 GHz | ||
| Common-mode to common-mode output return loss | SCC11 SCC22 | -3 | dB | At 0.01 to 11.1 GHz |
- Reflection coefficient given by SDD11(dB) < −12 + 2 × √f, with f in GHz.
- Reflection coefficient given by SDD11(dB) < −6.3 + 13 × log10(f/5.5), with f in GHz.
| Feature | Test Method | Performance |
|---|---|---|
| Electrostatic Discharge (ESD) to the Electrical Pins | MIL-STD-883C Method 3015.7 | Class 1(>2000 Volts) |
| Electromagnetic Interference(EMI) | FCC Class B | Compliant with Standards |
| CENELEC EN55022 Class B | ||
| CISPR22 ITE Class B | ||
| RF Immunity(RFI) | IEC61000-4-3 | Typically shows no measurable effect from a 10 V/m field swept from 80 to 1000 MHz |
| RoHS Compliance | RoHS Directive 2011/65/EU and its amendment (EU) 2015/863 | RoHS (EU) 2015/863 compliant |
Mechanical Dimensions
Units: mm
Pin Assignment and Description
| PIN # | Symbol | Description | Remarks |
|---|---|---|---|
| 1 | VeeT | Transmitter Ground | |
| 2 | TFAULT | Transmitter Fault | |
| 3 | TDIS | Transmitter Disable | |
| 4 | SDA | Data line for serial ID | |
| 5 | SCL | Clock line for serial ID | |
| 6 | MOD_ABS | Module Absent. Grounded within the module | |
| 7 | RS0 | No connection required | |
| 8 | LOS | Loss of Signal indication. Logic 0 indicates normal operation | |
| 9 | RS1 | No connection required | |
| 10 | VeeR | Receiver Ground | |
| 11 | VeeR | Receiver Ground | |
| 12 | RD– | Receiver Inverted DATA out. AC coupled | |
| 13 | RD+ | Receiver Non-inverted DATA out. AC coupled | |
| 14 | VeeR | Receiver Ground | |
| 15 | VccR | Receiver Power Supply | |
| 16 | VccT | Transmitter Power Supply | |
| 17 | VeeT | Transmitter Ground | |
| 18 | TD+ | Transmitter Non-Inverted DATA in. AC coupled | |
| 19 | TD– | Transmitter Inverted DATA in. AC coupled | |
| 20 | VeeT | Transmitter Ground |
ESD
The cable assembly's electrical pins are rated Class 1 (>2000 V) for electrostatic discharge per MIL-STD-883C Method 3015.7. Normal ESD precautions are still required during handling. The cable is shipped in ESD-protective packaging and should be removed from it and handled only in an ESD-protected environment.
The FluxLight CAB-SFP-SFP-1M-A-FL is compatible with the Arista CAB-SFP-SFP-1M, which Arista certifies on all its platforms. It works in any Arista switch port that takes the CAB-SFP-SFP-1M, on any supported EOS release.
