EX-SFP-1GE-T-FL Juniper EX-SFP-1GE-T Compatible 1000Base-T SFP 100m RJ45 CATx Transceiver Module
- Guaranteed compatible with Juniper
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 1G
- Supported Rate(s)
- 10M/
100M/ 1G - Cable Type
- Copper (RJ-45)
- Form Factor
- SFP
- Reach
- 100m
- Interface Type
- 10/
100/ 1000BASE-T - DDM
- Not supported
- Connector Type
- RJ45
- Operating Temperature
- 0°C to +70°C (COM)
- Power Consumption
- 1.2W max
Overview
FluxLight's EX-SFP-1GE-T-FL is a Juniper® compatible 1000Base SFP Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Juniper® original transceivers and are 100% compatible with other OEM and third party transceivers. The EX-SFP-1GE-T-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
Applications
- 10/100/1000BASE-T Ethernet over Category 5 (or better) UTP copper cable
- Connecting SFP switch ports to copper-cabled servers, appliances and legacy equipment
- Campus and enterprise access-layer links up to 100 m
Features
- 10/100/1000 Mb/s full-duplex operation (1.25 Gb/s SFP interface)
- Hot-pluggable SFP footprint with RJ-45 connector
- Up to 100 m over Category 5 UTP cable
- 10/100/1000BASE-T operation in host systems with an SGMII interface; 1000BASE-T only with non-SGMII SerDes
- Automatic crossover detection (no crossover cable required)
- Compliant with SFP MSA, IEEE 802.3-2002 and IEEE 802.3ab (1000BASE-T)
- Single +3.3 V supply, 1.2 W max
- Operating case temperature: 0°C to +70°C (COM)
- RoHS compliant
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Absolute Maximum Rating
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Operating Case Temperature | TOP | 0 | 70 | °C |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Supply Current | Is | 320 | 375 | mA | 1.2W max power over full range of voltage and temperature. See caution note below | |
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
| Surge Current | Isurge | 30 | mA | Hot plug above steady state current. See caution note |
Caution: Power consumption and surge current are higher than the specified values in the SFP MSA
General Specifications
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Data Rate | BR | 10 | 1,000 | Mb/s | IEEE 802.3 compatible. | |
| Cable Length | L | 100 | m | Category 5 UTP. BER <10⁻¹² |
Notes:
- Clock tolerance is ±50 ppm.
- Automatic crossover detection is enabled. External crossover cable is not required.
- 10/100/1000BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SerDes that does not support SGMII, the module will operate at 1000BASE-T only.
High-Speed Electrical Signals
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Line Frequency | fL | 125 | MHz | 5-level encoding, per IEEE 802.3 | ||
| Tx Output Impedance | Zout,TX | 100 | Ω | Differential | ||
| Rx Input Impedance | Zin,RX | 100 | Ω | Differential | ||
| Single ended data input swing | Vinsing | 250 | 1200 | mV | Single ended | |
| Single ended data output swing | Voutsing | 350 | 800 | mV | Single ended | |
| Rise/Fall Time | Tr,Tf | 175 | ps | 20%-80% | ||
| Tx Input Impedance | Zin | 50 | Ω | Single ended | ||
| Rx Output Impedance | Zout | 50 | Ω | Single ended |

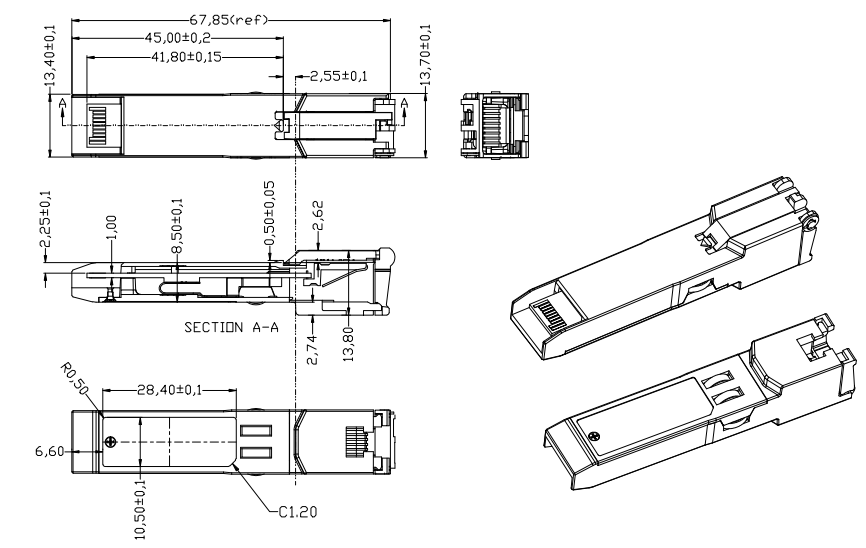

Mechanical Dimensions
Units: mm

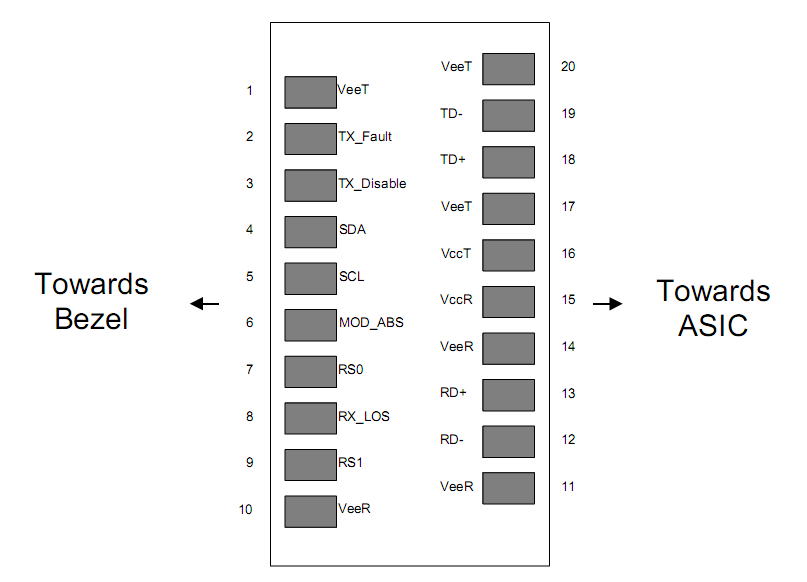

Pin Assignment and Description
| Pin | Signal Name | Description | Plug Seq. |
|---|---|---|---|
| 1 | VeeT | Transmitter Ground | 1 |
| 2 | TX FAULT | Transmitter Fault Indication | 3 |
| 3 | TX DISABLE | Transmitter Disable | 3 |
| 4 | SDA | SDA Serial Data Signal | 3 |
| 5 | SCL | SCL Serial Clock Signal | 3 |
| 6 | MOD_ABS | Module Absent. Grounded within the module | 3 |
| 7 | RS0 | Not Connected | 3 |
| 8 | LOS | Loss of Signal | 3 |
| 9 | RS1 | Not Connected | 3 |
| 10 | VeeR | Receiver ground | 1 |
| 11 | VeeR | Receiver ground | 1 |
| 12 | RD- | Inv. Received Data Out | 3 |
| 13 | RD+ | Received Data Out | 3 |
| 14 | VeeR | Receiver ground | 1 |
| 15 | VCCR | Receiver Power Supply | 2 |
| 16 | VCCT | Transmitter Power Supply | 2 |
| 17 | VeeT | Transmitter Ground | 1 |
| 18 | TD+ | Transmit Data In | 3 |
| 19 | TD- | Inv. Transmit Data In | 3 |
| 20 | VeeT | Transmitter Ground | 1 |
Notes:
- TX Fault is not used and is always tied to ground through a 100 Ω resistor.
- TX Disable as described in the MSA is applicable to the 1000BASE-T module.
- Mod-Def 0, 1, 2 are the module definition pins. They should be pulled up with a 4.7–10 kΩ resistor on the host board to a supply less than VccT + 0.3 V or VccR + 0.3 V.
- Mod-Def 0 is tied to ground through a resistor to indicate that the module is present.
- Mod-Def 1 is the clock line of the two-wire serial interface for optional serial ID.
- Mod-Def 2 is the data line of the two-wire serial interface for optional serial ID.
- RD-/+: These are the differential receiver outputs. They are AC-coupled 100 Ω differential lines which should be terminated with 100 Ω differential at the user SerDes. The AC coupling is done inside the module and is thus not required on the host board.
- VccR and VccT are the receiver and transmitter power supplies.
- TD-/+: These are the differential transmitter inputs. They are AC-coupled differential lines with 100 Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.
ESD
Normal ESD precautions are required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
ACX Series9
- ACX710
- ACX5000EOL
- ACX5448
- ACX7020
- ACX7024
- ACX7024X
- ACX7332
- ACX7348
- ACX7509
EX Series23
- EX2300
- EX2300 Multigigabit
- EX2300-C
- EX3200EOL
- EX3400
- EX4000
- EX4100
- EX4100 Multigigabit
- EX4100-F
- EX4100-H-12T
- EX4100-H-24F
- EX4100-H-24MP
- EX4300
- EX4400
- EX4400 Multigigabit
- EX4400-24X
- EX4400-48F
- EX4400-48T
- EX4600
- EX4650-48Y
- EX9204
- EX9208
- EX9214
MX Series18
- MX5EOL
- MX10EOL
- MX40EOL
- MX80EOL
- MX104EOL
- MX150EOL
- MX204
- MX240
- MX301
- MX301-M
- MX480
- MX960
- MX2008
- MX2010
- MX2020
- MX10004
- MX10008
- MX10016EOL
NFX Series1
- NFX250
PTX Series3
- PTX1000EOL
- PTX10008
- PTX10016
QFX Series7
- QFX5100EOL
- QFX5110
- QFX5120-48Y
- QFX5200-32C
- QFX10002EOL
- QFX10008
- QFX10016
SRX Series18
- SRX220EOL
- SRX300
- SRX320
- SRX340
- SRX345
- SRX380
- SRX550EOL
- SRX550 HMEOL
- SRX1600
- SRX2300
- SRX4100
- SRX4120
- SRX4200
- SRX4300
- SRX4700
- SRX5400
- SRX5600
- SRX5800
FluxLight's Full Line of 1000Base-SX Optical Transceivers
- 3Com3CSFP93-FL
- Alcatel-LucentSFP-GIG-T-FL
- Allied TelesisAT-SPTX-FL
- AristaSFP-1G-T-A-FL
- AristaSFP-1G-T-A-FLT
- Brocade-FoundryE1MG-TX-FL
- CiscoGLC-TE-FL
- CiscoGLC-TE-FLT
- CiscoGLC-T-FL
- CiscoGLC-T-FLT
- CiscoSFP-GE-T-FL
- Dell407-BBOS-FL
- D-LinkDGS-712-FL
- Extreme10050-FL
- F5OPT-0015-00-FL
- FinisarFCMJ-8521-3-FL
- FortinetFN-TRAN-GC-FL
- HPJ8177B-FL
- HPJ8177C-FL
- HPJD089B-FL
- HUAWEISFP-T-FL
- JuniperEX-SFP-1GE-T-FL
- JuniperEX-SFP-1GE-T-FLT
- JuniperQFX-SFP-1GE-T-FL
- JuniperSFP-1GE-T-FL
- JuniperSFP-1GE-T-FLT
- JuniperSRX-SFP-1GE-T-FL
- JuniperSRX-SFP-1GE-T-FLT
- LinksysMGBT1-FL
- MerakiMA-SFP-1GB-TX-FL
- MerakiMA-SFP-1GB-TX-FLT
- NetgearAGM734F-FL
- Palo AltoPAN-SFP-CG-FL
Licensing
The following is a list of Finisar Corporation patents Fluxlight has licensed. This licensure recognizes and compensates Finisar for their intellectual property. The EX-SFP-1GE-T-FL, like all Fluxlight optical transceivers, is covered by this license agreement. Therefore, Fluxlight customers can rest assured that all products purchased are fully licensed, and our customers are under no potential liability that may ensue from the use of unlicensed optical transceiver products.
U.S. Patent Numbers: 7,184,668 (System and method of protecting eye safety during operation of a fiber optic transceiver), 7,079,775 (Integrated memory mapped controller circuit for fiber optics transceiver), 6,957,021 (Optical transceiver with memory mapped locations), 7,058,310 (System and method for protecting eye safety during operation of a fiber optic transceiver), 6,952,531 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,162,160 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,050,720 (Integrated memory mapped controller circuit for fiber optics transceiver)
