FluxLight has the fiber optic attenuator you need to reduce the optical power transmitted between fiber optic links. Our SC to SC optical attenuators feature excellent environmental and attenuation stability, are easy to install and meet Telecordia GR-910-CORE requirements. This particular unit creates a 10dB loss in optical power.

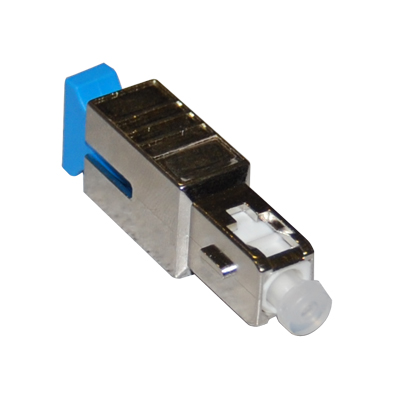

Attenuator SC/SC 10dB
Features: Excellent Environmental Stability, Attenuation Stability, Polarization Insensitive, Easy Installation, Telecordia GR-910-core Requirement
Applications: Telecommunications System, Local Area Networks, CATV, Subscribe Loop, Test Equipment, Optical Fiber Sensors
Specifications:
Wavelength: 1310/ 155040nm
Insertion Loss: 1~5dB 0.75 6~10dB 1.0 11~15dB 15%
Return Loss: PC > 45 dB ; APC > 65 dB
Temperature Ranges and Humidity:
Storage Temperature -55C to +80C
Operating Temperature -40C to +75C
Fluxlight provides a non-transferable serviceable lifetime warranty to the purchaser of Fluxlight hardware product purchased from Fluxlight or an authorized Fluxlight reseller. Fluxlight warrants to the original end customer of its products specified below that its products are free from defects in material and workmanship affecting form, fit, and function. All such products sold will work in the application specified at the time of purchase and will meet the datasheet specifications as found on Fluxlight’s Web site or otherwise provided by Fluxlight. Any claim alleging that any product fails to conform to the foregoing may be made only by the customer who purchased such product and only while such customer owns such product and while the product remains within the serviceable lifetime period. Fluxlight, at its option, will repair, replace, or provide a credit or refund of either the original purchase price or fair market value, whichever is lower, of any product that is determined by Fluxlight to be defective. Some systems that use Fluxlight products may be allowed to operate outside of the system manufacturer’s published settings and Fluxlight does not cover failure in these circumstances. This warranty covers only defects arising under normal use and do not include malfunctions or failures resulting from misuse, abuse, neglect, alteration, problems with electrical power, usage not in accordance with product instructions, acts of nature, or improper installation or improper operation or repairs made by anyone other than Fluxlight or an Fluxlight authorized third-party service provider. Fluxlight reserves the right to substitute functionally equivalent new or serviceable used parts.
