JNP-QSFP-100G-LR4-FL Juniper JNP-QSFP-100G-LR4 Compatible 100GBase-LR4 QSFP28 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

$349.99

Free continental US shipping on orders over $99 Details

Loading...

Need a larger quantity? Request a quote

Questions? Call (888) 874-7574

Quick Specs

Rate Category
100G
Form Factor
QSFP28
Interface Type
100GBASE-LR4
Standard/Protocol
IEEE 802.3ba 100GBASE-LR4, QSFP28 MSA (SFF-8636)
TX Wavelength
1295.56/1300.05/1304.58/1309.14nm (LAN-WDM)
RX Wavelength
1295.56/1300.05/1304.58/1309.14nm (LAN-WDM)
Cable Type
SMF
Reach
10km (SMF)
DDM
Supported
Connector Type
Duplex LC (UPC)
Power Consumption
4W max
Operating Temperature
0°C to +70°C (COM)

Overview

The JNP-QSFP-100G-LR4-FL is a 103/112 Gbps transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard and OUT-4. The module converts 4 input channels of 25/28 Gbps electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 103/112 Gbps optical transmission. Reversely on the receiver side, the module de-multiplexes a 103/112 Gbps optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high-performance cooled LAN WDM EA-DFB transmitters and high sensitivity PIN receivers provide superior performance for 100G applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 and OUT-4l1-9D1F requirements. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA).

Applications

  • 100 Gigabit Ethernet over duplex single-mode fiber up to 10 km
  • Switch/router uplinks, campus and inter-building links
  • Data center interconnect

Features

  • Hot-pluggable QSFP28 MSA form factor with duplex LC receptacle
  • Compliant with IEEE 802.3ba 100GBASE-LR4
  • 103.1 Gb/s aggregate bit rate; 4 × 25G electrical interface (OIF CEI-28G-VSR)
  • Four LAN-WDM lanes at 1295.56 / 1300.05 / 1304.58 / 1309.14 nm
  • Cooled 4 × 25 Gb/s LAN-WDM DFB transmitter and 4 × 25 Gb/s PIN receiver
  • Up to 10 km over G.652 single-mode fiber
  • Average launch power −4.3 to +4.5 dBm per lane; receiver sensitivity −8.6 dBm (OMA) per lane
  • Real-time Digital Diagnostic Monitoring (DDM/DOM) per SFF-8636
  • Single +3.3V power supply, maximum power consumption 4.0 W
  • Operating case temperature: 0°C to +70°C (COM)
  • RoHS-6 compliant and Class 1 laser eye safety certified (IEC 60825-1)
  • 100% compatible with and programmed for the target OEM platform
  • Backed by a FluxLight lifetime warranty

Absolute Maximum Rating

The operation in excess of any absolute maximum ratings might cause permanent damage to this module.

ParameterSymbolMinMaxUnitNotes
Storage TemperatureTS-4085°C
Operating Case TemperatureTOP070°C
Power Supply VoltageVCC-0.53.6V
Relative HumidityRH085%Non-condensing
Damage Threshold, each laneTHd5.5dBm

Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

ParameterSymbolMinTypicalMaxUnit
Supply VoltageVcc3.1353.465V
Supply CurrentIcc1.15A
Module Total PowerP4W

Optical Characteristics

ParameterSymbolMinTypicalMaxUnit
Center Wavelength, Lane 0λ01294.531295.561296.59nm
Center Wavelength, Lane 1λ11299.021300.051301.09nm
Center Wavelength, Lane 2λ21303.541304.581305.63nm
Center Wavelength, Lane 3λ31308.091309.141310.19nm
Transmitter
Side Mode Suppression RatioSMSR30dB
Total Average Launch PowerPT10.5dBm
Average Launch Power, each lanePAVG-4.34.5dBm
Extinction RatioER4dB
Average Launch Power OFF Transmitter, each lanePOFF-30dBm
Receiver
Damage Threshold, each laneTHd5.5dBm
Average Receive Power, each lanePin-10.64.5dBm
Receiver Sensitivity (OMA), each laneSEN-8.6dBm
Receiver ReflectanceRR-26dB
LOS AssertLOSA-24dBm
LOS De-AssertLOSD-11.6dBm
LOS HysteresisLOSH0.5dB

Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.

ParameterSymbolMinMaxUnit
Temperature monitor absolute errorDMI_Temp-55°C
Supply voltage monitor absolute errorDMI_VCC-0.10.1V
Channel RX power monitor absolute errorDMI_RX_Ch-33dB
Channel bias current monitor absolute errorDMI_Ibias_Ch-10%10%mA
Channel TX power monitor absolute errorDMI_TX_Ch-33dB

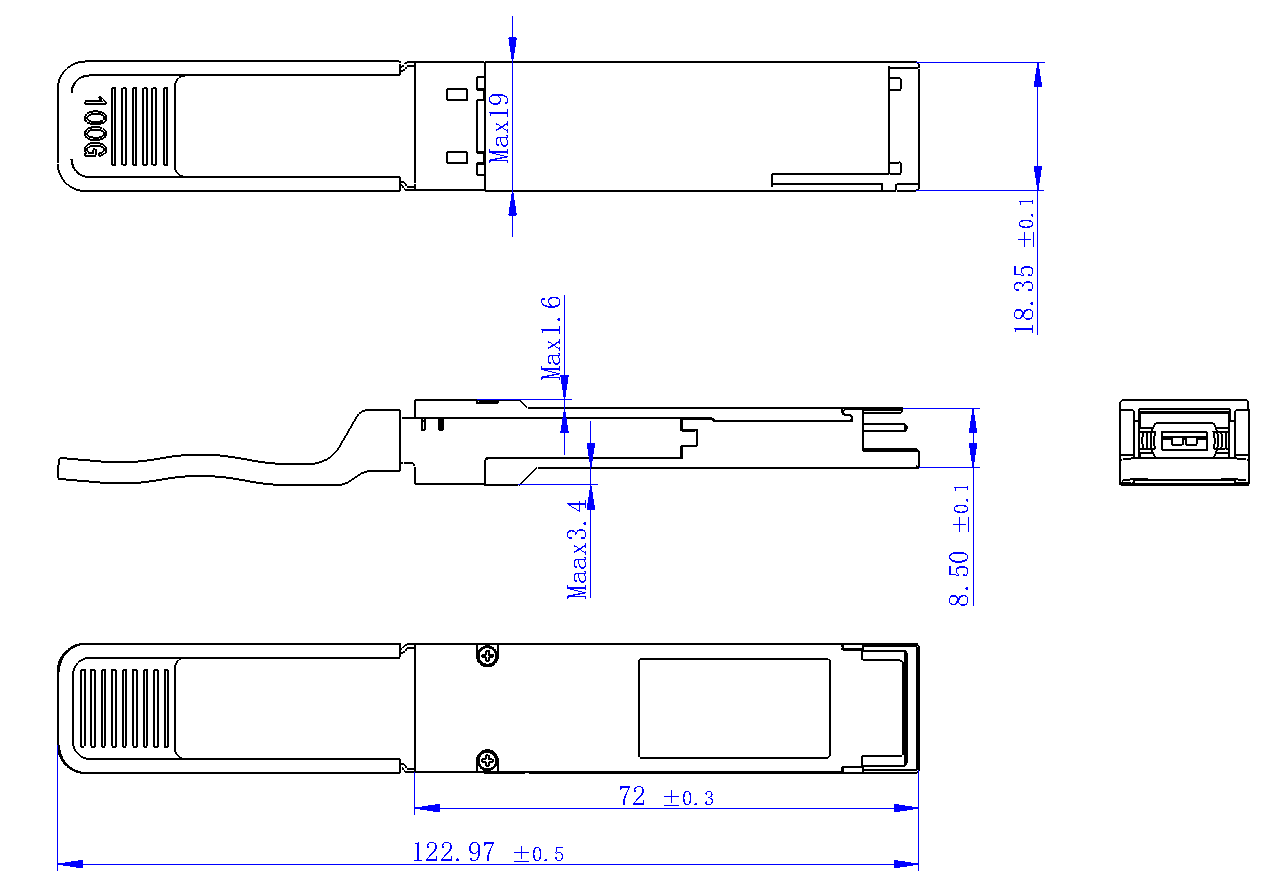

Mechanical Dimensions

Units: mm

JNP-QSFP-100G-LR4-FL Mechanical Dimensions

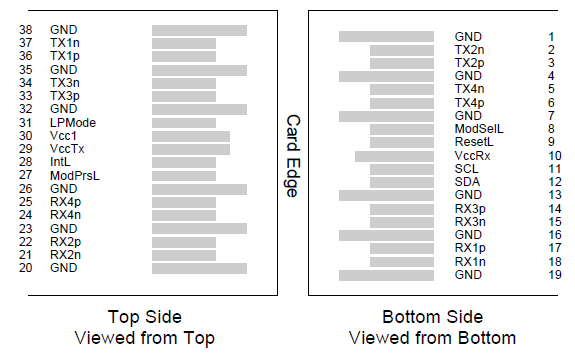

Pin Assignment and Description

JNP-QSFP-100G-LR4-FL Pin Assignment and Description
PinLogicSymbolDescriptionPlug Sequence
1GNDGround1
2CML-ITx2nTransmitter Inverted Data Input3
3CML-ITx2pTransmitter Non-Inverted Data Input3
4GNDGround1
5CML-ITx4nTransmitter Inverted Data Input3
6CML-ITx4pTransmitter Non-Inverted Data Input3
7GNDGround1
8LVTTL-IModSelLModule Select3
9LVTTL-IResetLModule Reset3
10VccRx+3.3V Power Supply Receiver2
11LVCMOS-I/OSCL2-Wire Serial Interface Clock3
12LVCMOS-I/OSDA2-Wire Serial Interface Data3
13GNDGround1
14CML-ORx3pReceiver Non-Inverted Data Output3
15CML-ORx3nReceiver Inverted Data Output3
16GNDGround1
17CML-ORx1pReceiver Non-Inverted Data Output3
18CML-ORx1nReceiver Inverted Data Output3
19GNDGround1
20GNDGround1
21CML-ORx2nReceiver Inverted Data Output3
22CML-ORx2pReceiver Non-Inverted Data Output3
23GNDGround1
24CML-ORx4nReceiver Inverted Data Output3
25CML-ORx4pReceiver Non-Inverted Data Output3
26GNDGround1
27LVTTL-OModPrsLModule Present3
28LVTTL-OIntLInterrupt3
29VccTx+3.3V Power Supply Transmitter2
30Vcc1+3.3V Power Supply2
31LVTTL-ILPModeLow Power Mode3
32GNDGround1
33CML-ITx3pTransmitter Non-Inverted Data Input3
34CML-ITx3nTransmitter Inverted Data Input3
35GNDGround1
36CML-ITx1pTransmitter Non-Inverted Data Input3
37CML-ITx1nTransmitter Inverted Data Input3
38GNDGround1

ESD

This transceiver is specified as an ESD threshold of 1kV for the high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 / JESD22-A114-A (Human Body Model). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD-protective packaging. It should be removed from the packaging and handled only in an ESD-protected environment.

Laser Safety

This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).

ACX Series11
  • ACX710
  • ACX5448
  • ACX5448-D
  • ACX5448-M
  • ACX7024
  • ACX7024X
  • ACX7100-32C
  • ACX7100-48L
  • ACX7332
  • ACX7348
  • ACX7509
EX Series12
  • EX4300 Multigigabit
  • EX4400
  • EX4400 Multigigabit
  • EX4400-24X
  • EX4400-48F
  • EX4400-48T
  • EX4650-48Y
  • EX9204
  • EX9208
  • EX9214
  • EX9251EOL
  • EX9253EOL
MX Series14
  • MX204
  • MX240
  • MX301
  • MX301-M
  • MX304
  • MX480
  • MX960
  • MX2008
  • MX2010
  • MX2020
  • MX10003EOL
  • MX10004
  • MX10008
  • MX10016EOL
PTX Series11
  • PTX1000EOL
  • PTX3000EOL
  • PTX5000EOL
  • PTX10001-36MR
  • PTX10002-36QDD
  • PTX10002-60CEOL
  • PTX10002-60MR
  • PTX10003
  • PTX10004
  • PTX10008
  • PTX10016
QFX Series23
  • QFX5110
  • QFX5120-32C
  • QFX5120-48T
  • QFX5120-48Y
  • QFX5120-48YM
  • QFX5130-32CD
  • QFX5130-48C
  • QFX5130-48CM
  • QFX5130E-32CD
  • QFX5200-32C
  • QFX5200-48YEOL
  • QFX5210-64C
  • QFX5220-32CD
  • QFX5220-128C
  • QFX5230-64CD
  • QFX5240-64QD
  • QFX5241-64QD
  • QFX5700
  • QFX5700E
  • QFX10002EOL
  • QFX10002-60C
  • QFX10008
  • QFX10016
SRX Series8
  • SRX2300
  • SRX4120
  • SRX4300
  • SRX4600
  • SRX4700
  • SRX5400
  • SRX5600
  • SRX5800

Licensing

The following is a list of Finisar Corporation patents Fluxlight has licensed. This licensure recognizes and compensates Finisar for their intellectual property. The JNP-QSFP-100G-LR4-FL, like all Fluxlight optical transceivers, is covered by this license agreement. Therefore, Fluxlight customers can rest assured that all products purchased are fully licensed, and our customers are under no potential liability that may ensue from the use of unlicensed optical transceiver products.

U.S. Patent Numbers: 7,184,668 (System and method of protecting eye safety during operation of a fiber optic transceiver), 7,079,775 (Integrated memory mapped controller circuit for fiber optics transceiver), 6,957,021 (Optical transceiver with memory mapped locations), 7,058,310 (System and method for protecting eye safety during operation of a fiber optic transceiver), 6,952,531 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,162,160 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,050,720 (Integrated memory mapped controller circuit for fiber optics transceiver)

Original Equipment Manufacturer (OEM) names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for cross reference/comparative purposes only.

Warranty

This part is covered by our Limited Lifetime Warranty, a 10-year serviceable lifetime, and our 30-Day Money-Back Guarantee. Read the full warranty and return terms.
