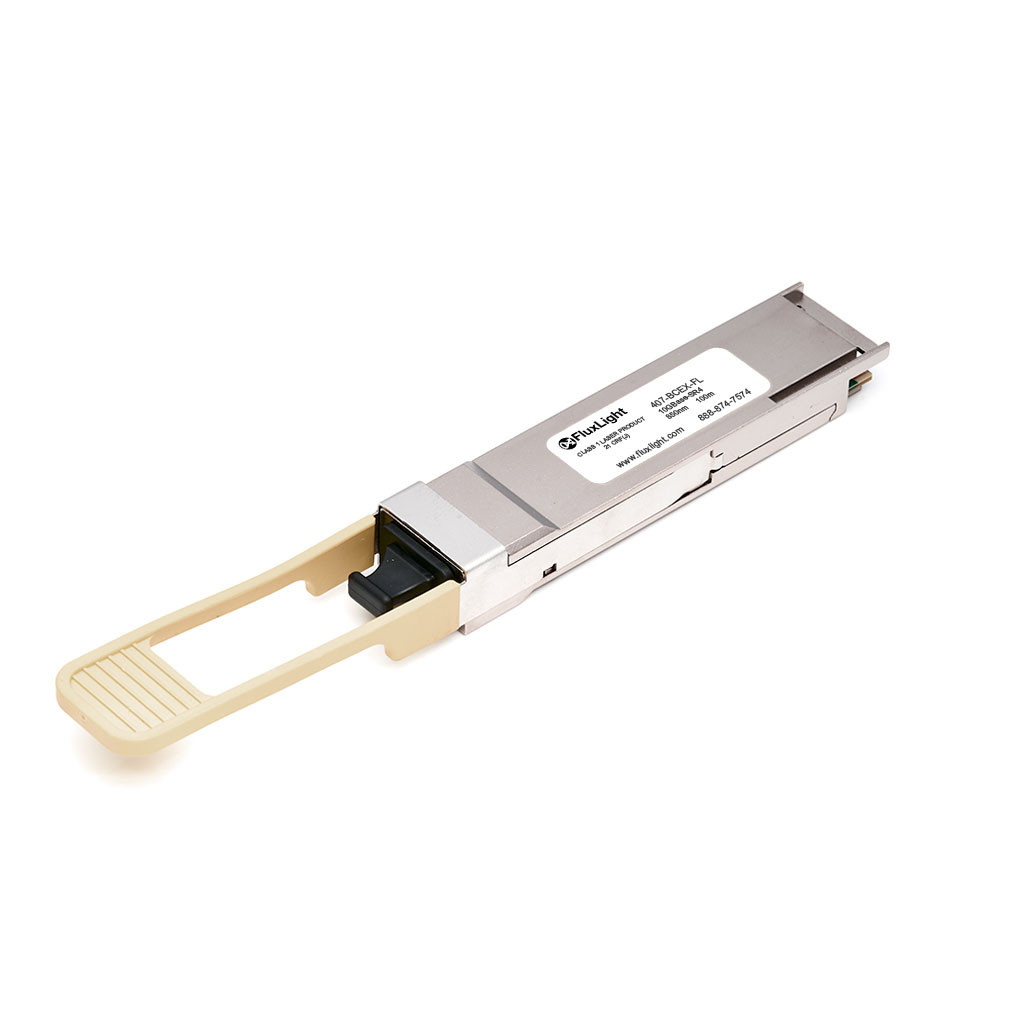

407-BCEX-FL, Dell 407-BCEX Compatible 100GBase-SR4 QSFP28 850nm 100m DOM MPO MMF Optical Transceiver ModuleLoading...
Dell Compatible
407-BBWV-FL Dell 407-BBWV Compatible 100GBase-SR4 QSFP28 850nm 100m DOM MPO MMF Optical Transceiver Module
- Guaranteed compatible with Dell
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 100G
- Form Factor
- QSFP28
- Interface Type
- 100GBASE-SR4
- Standard/Protocol
- IEEE 802.3bm 100GBASE-SR4
- TX Wavelength
- 850nm
- RX Wavelength
- 850nm
- Cable Type
- MMF
- Reach
- 70m (OM3), 100m (OM4)
- DDM
- Supported
- Connector Type
- MPO-12 (Female, Flat/
PC) - Power Consumption
- 2.5W max
- Operating Temperature
- 0°C to +70°C (COM)
Overview
The 407-BBWV-FL is a parallel 100 Gbps Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25 Gbps operation for an aggregate data rate of 100 Gbps on 100 meters of OM4 multi-mode fiber. An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle.The module operates by a single +3.3V power supply. The 407-BBWV-FL is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Applications
- 100 Gigabit Ethernet over parallel multimode fiber (100GBASE-SR4)
- Data center short-reach interconnect (spine-leaf, ToR/EoR, switch-to-switch)
- High-density 100G switch and router uplinks / aggregation
- 4 × 25G breakout to 25GBASE-SR (SFP28) via MPO-to-LC breakout cabling
Features

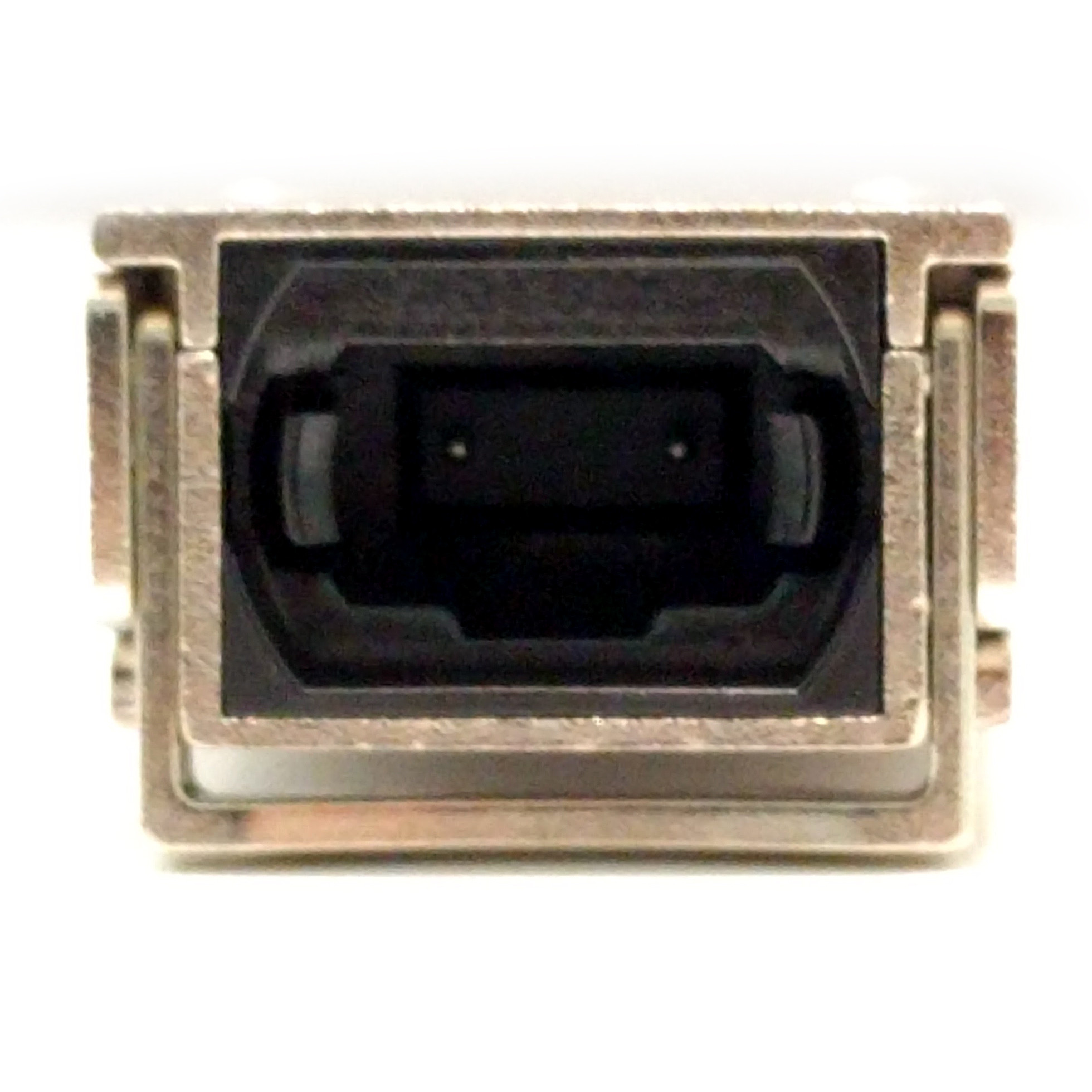

- Hot-pluggable QSFP28 footprint with MPO-12 (female) receptacle
- Compliant with IEEE 802.3bm 100GBASE-SR4
- Four-lane 4 × 25.78125 Gbps (NRZ) design; 100 Gbps aggregate
- 850 nm VCSEL array transmitter and PIN photodiode array receiver
- Parallel multimode fiber over 8-fiber MPO-12; up to 70 m (OM3) / 100 m (OM4)
- Average launch power −8.4 to +2.4 dBm per lane; stressed receiver sensitivity −5.2 dBm (OMA) per lane
- RS-FEC required for full-reach operation
- Real-time Digital Diagnostic Monitoring (DDM/DOM) per SFF-8636
- Single +3.3V power supply with low power dissipation (< 2.5 W)
- QSFP28 MSA compliant, RoHS-6 compliant, and Class 1 laser eye safety certified (IEC/EN 60825-1)
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Absolute Maximum Rating
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Power Supply Voltage | VCC | 0 | 3.6 | V |
| Relative Humidity | RH | 15 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Operating Case Temperature | TOP | 0 | 70 | °C | ||
| Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
| Data Rate (Each Lane) | DR | 25.78125 | Gb/s | |||
| Power Consumption | PC | 1.5 | 2.5 | W | ||
| Link Distance with OM3 | D | 70 | m | Require RS-FEC in host platform | ||
| Link Distance with OM4 | D | 100 | m | Require RS-FEC in host platform |
Electrical Characteristics
The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Differential Data Input Swing | VIN | 100 | 900 | mV | |
| Input Differential Impedance | Zin | 100 | Ω | ||
| Transmitter Disable Voltage | VD | 2.0 | Vcc | V | |
| Transmitter Enable Voltage | VEN | 0 | 0.8 | V | |
| Differential Data Output Swing | VOUT | 300 | 600 | 900 | mV |
| Output Differential Impedance | Zout | 100 | Ω | ||
| LOS Assert Voltage | VLOSA | 2.0 | Vcc | V | |
| LOS De-assert Voltage | VLOSD | 0 | 0.8 | V |
Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Transmitter | ||||||
| Average Output Power, each lane | POUT | -8.4 | 2.4 | dBm | ||
| Optical Modulation Amplitude, each lane | OMA | -6.4 | 3 | dBm | ||
| Extinction Ratio | ER | 2 | dB | |||
| Average Output Power (Laser Off) | POFF | -30 | dBm | |||
| Center Wavelength | λ | 840 | 850 | 860 | nm | |
| RMS Spectral Width | σλ | 0.6 | nm | |||
| Optical Return Loss Tolerance | ORLT | 12 | dB | |||
| Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3}, Hit ratio 1.5×10⁻³ hits/sample | {0.3, 0.38, 0.45, 0.35, 0.41, 0.5} | |||||
| Receiver | ||||||
| Average Receive Power, each lane | Pin | -10.3 | 2.4 | dBm | ||
| Unstressed Receiver Sensitivity (OMA), each lane | Sen | -7.2 | dBm | BER = 5E-5, measured with PRBS 2³¹−1 at 25.78Gb/s | ||
| Stressed Receiver Sensitivity (OMA), each lane | SRS | -5.2 | dBm | Per IEEE 802.3bm; conformance test signal, BER 5E-5 with RS-FEC | ||
| Receiver Damage Threshold, per Lane | PRdmg | 3.4 | dBm | |||
| Center Wavelength | λ | 840 | 850 | 860 | nm | |
| Receiver Reflectance | RFL | -12 | dB | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS De-Assert | LOSD | -13 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 2 | 6 | dB | |

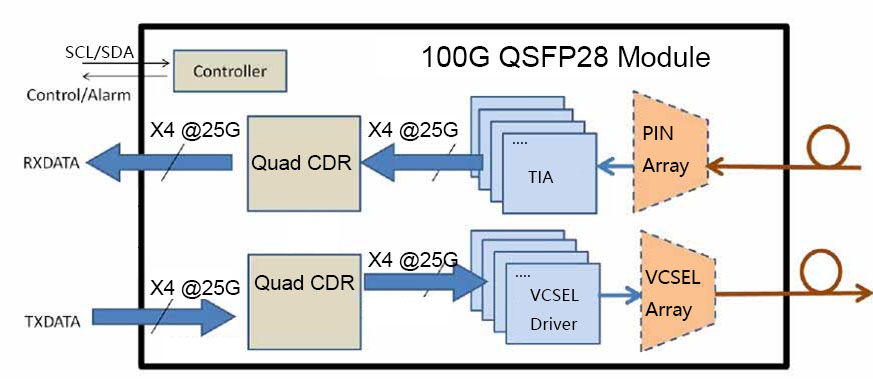

Block Diagram of Transceiver
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -5 | 5 | °C |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | 3 | dB |

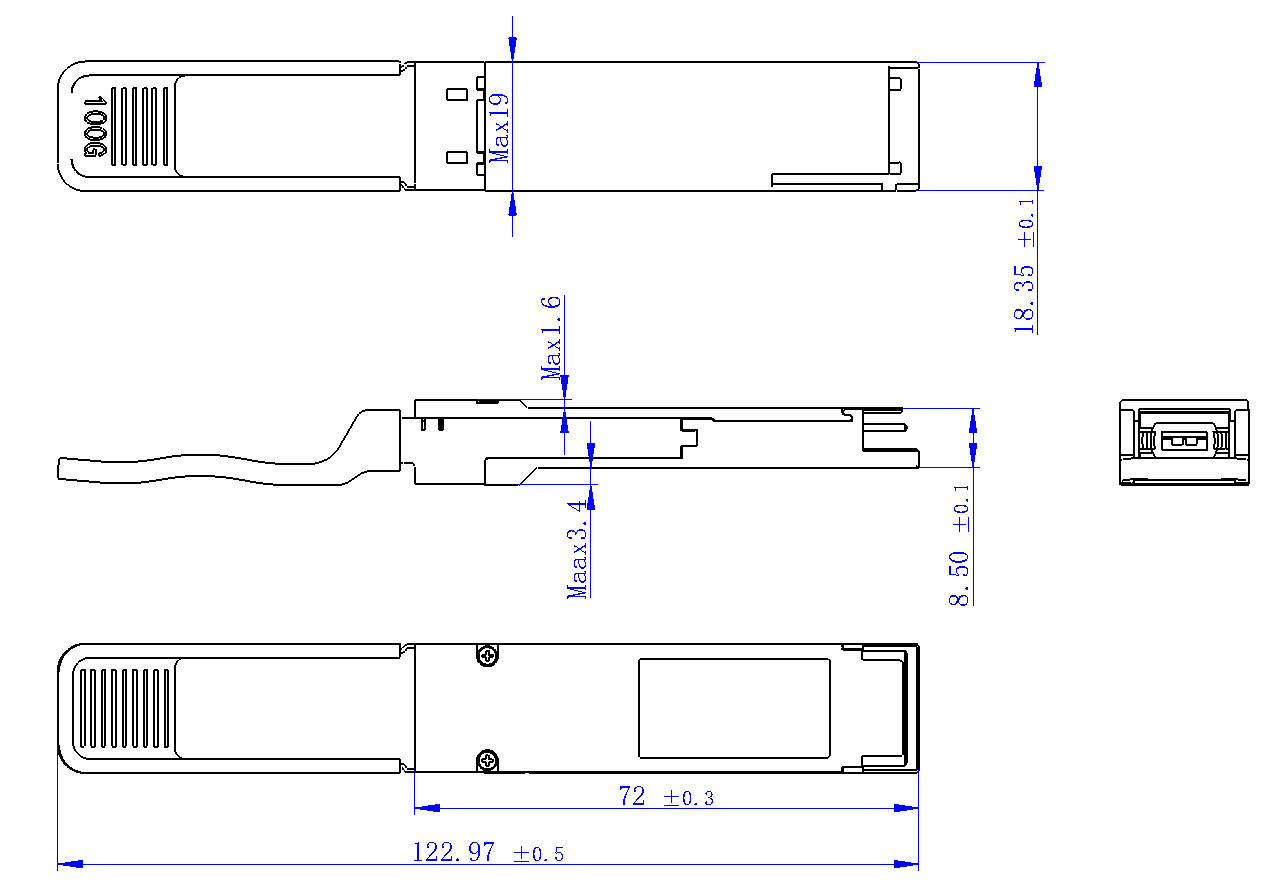

Mechanical Dimensions
Units: mm

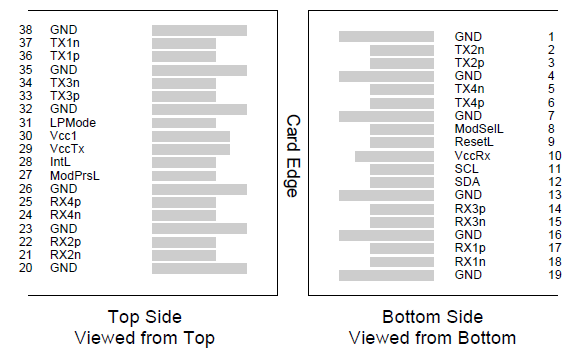

Pin Assignment and Description
| Pin | Logic | Symbol | Description | Plug Sequence |
|---|---|---|---|---|
| 1 | GND | Ground | 1 | |
| 2 | CML-I | Tx2n | Transmitter Inverted Data Input | 3 |
| 3 | CML-I | Tx2p | Transmitter Non-Inverted Data Input | 3 |
| 4 | GND | Ground | 1 | |
| 5 | CML-I | Tx4n | Transmitter Inverted Data Input | 3 |
| 6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input | 3 |
| 7 | GND | Ground | 1 | |
| 8 | LVTTL-I | ModSelL | Module Select | 3 |
| 9 | LVTTL-I | ResetL | Module Reset | 3 |
| 10 | VccRx | +3.3V Power Supply Receiver | 2 | |
| 11 | LVCMOS-I/O | SCL | 2-Wire Serial Interface Clock | 3 |
| 12 | LVCMOS-I/O | SDA | 2-Wire Serial Interface Data | 3 |
| 13 | GND | Ground | 1 | |
| 14 | CML-O | Rx3p | Receiver Non-Inverted Data Output | 3 |
| 15 | CML-O | Rx3n | Receiver Inverted Data Output | 3 |
| 16 | GND | Ground | 1 | |
| 17 | CML-O | Rx1p | Receiver Non-Inverted Data Output | 3 |
| 18 | CML-O | Rx1n | Receiver Inverted Data Output | 3 |
| 19 | GND | Ground | 1 | |
| 20 | GND | Ground | 1 | |
| 21 | CML-O | Rx2n | Receiver Inverted Data Output | 3 |
| 22 | CML-O | Rx2p | Receiver Non-Inverted Data Output | 3 |
| 23 | GND | Ground | 1 | |
| 24 | CML-O | Rx4n | Receiver Inverted Data Output | 3 |
| 25 | CML-O | Rx4p | Receiver Non-Inverted Data Output | 3 |
| 26 | GND | Ground | 1 | |
| 27 | LVTTL-O | ModPrsL | Module Present | 3 |
| 28 | LVTTL-O | IntL | Interrupt | 3 |
| 29 | VccTx | +3.3V Power Supply Transmitter | 2 | |
| 30 | Vcc1 | +3.3V Power Supply | 2 | |
| 31 | LVTTL-I | LPMode | Low Power Mode | 3 |
| 32 | GND | Ground | 1 | |
| 33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input | 3 |
| 34 | CML-I | Tx3n | Transmitter Inverted Data Input | 3 |
| 35 | GND | Ground | 1 | |
| 36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input | 3 |
| 37 | CML-I | Tx1n | Transmitter Inverted Data Input | 3 |
| 38 | GND | Ground | 1 |
ESD
This transceiver is specified as an ESD threshold of 1kV for the high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 / JESD22-A114-A (Human Body Model). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD-protective packaging. It should be removed from the packaging and handled only in an ESD-protected environment.
Laser Safety
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
