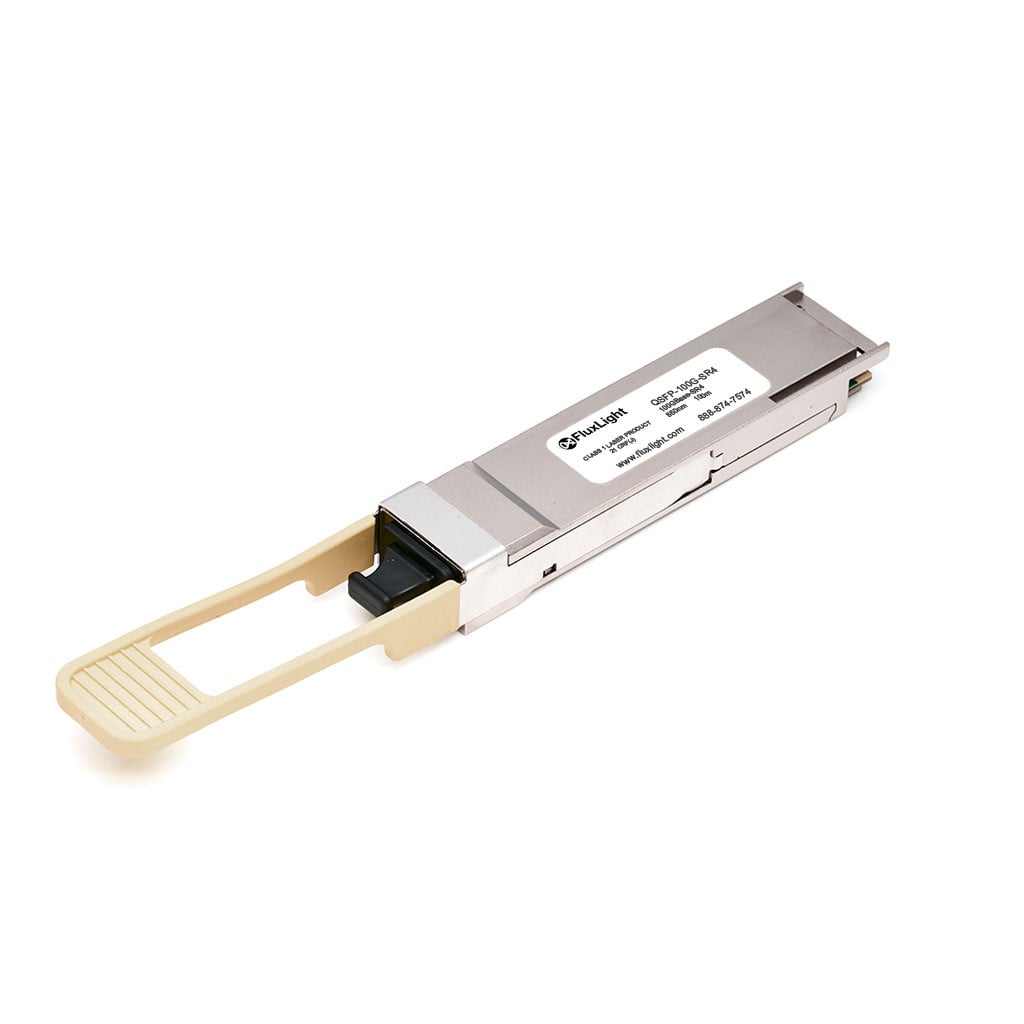

QSFP-100G-SR4-A-FL Arista QSFP-100G-SR4 Compatible 100GBase-SR4 QSFP28 850nm 100m DOM MPO MMF Optical Transceiver Module

Name: Arista QSFP-100G-SR4 Compatible 100GBase-SR4 QSFP28 850nm 100m DOM MPO MMF Optical Transceiver Module
Brand: Arista Compatible
SKU: QSFP-100G-SR4-A-FL
Availability: InStock
Rating: 5 (1 reviews)

5 · 1 review

$79.99

528 in stock

Order by 3 PM CT for same-day shipping

Free continental US shipping on orders over $99 Details

Guaranteed compatible with Arista
10-year warranty
30-day money-back guarantee

Need a larger quantity? Request a quote

Questions? Call (888) 874-7574

Quick Specs

Rate Category: 100G
Form Factor: QSFP28
Interface Type: 100GBASE-SR4
Standard/Protocol: IEEE 802.3bm 100GBASE-SR4
TX Wavelength: 850nm
RX Wavelength: 850nm
Cable Type: MMF
Reach: 70m (OM3), 100m (OM4)
DDM: Supported

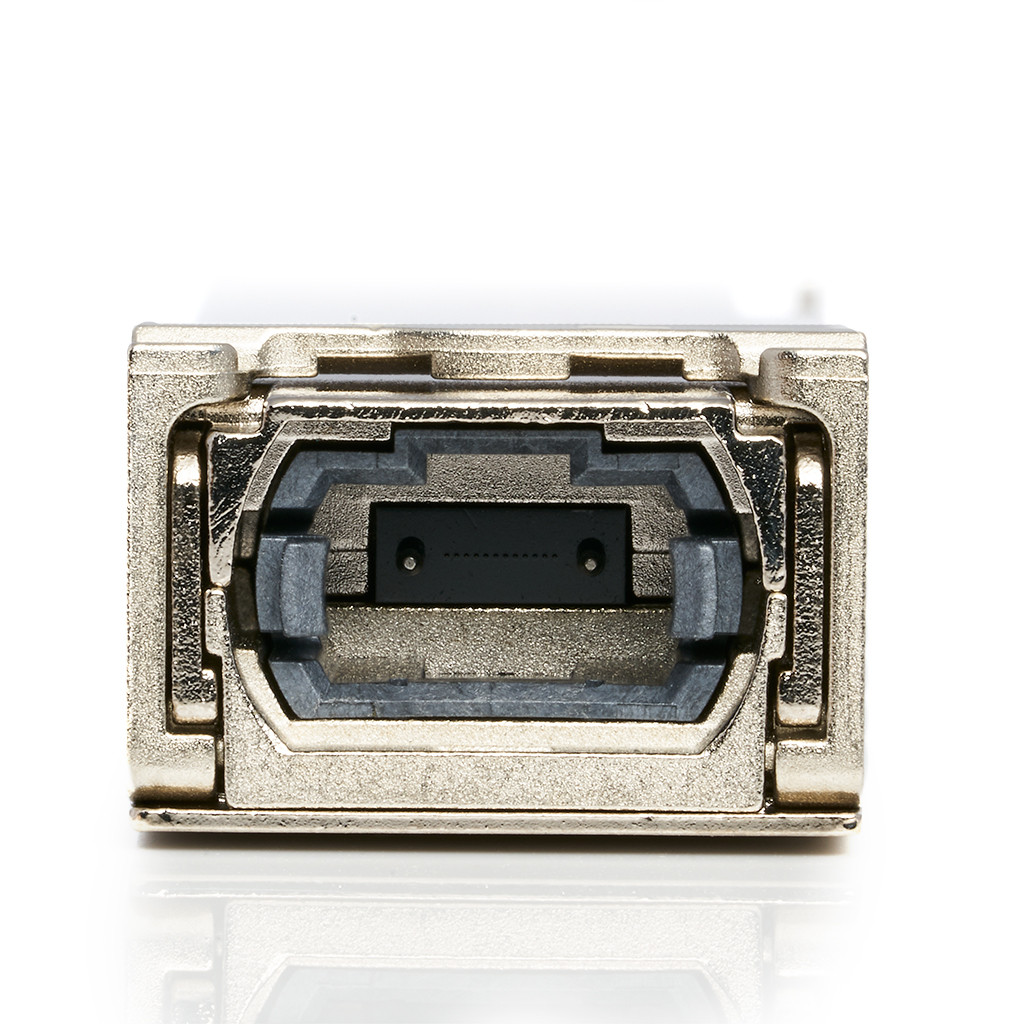

Connector Type: MPO-12 (Female, Flat/PC)
Power Consumption: 2.5W max
Operating Temperature: 0°C to +70°C (COM)

Overview

The QSFP-100G-SR4-A-FL is a parallel 100 Gbps Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25 Gbps operation for an aggregate data rate of 100 Gbps on 100 meters of OM4 multi-mode fiber. An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle.The module operates by a single +3.3V power supply. The QSFP-100G-SR4-A-FL is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Applications

100 Gigabit Ethernet over parallel multimode fiber (100GBASE-SR4)
Data center short-reach interconnect (spine-leaf, ToR/EoR, switch-to-switch)
High-density 100G switch and router uplinks / aggregation
4 × 25G breakout to 25GBASE-SR (SFP28) via MPO-to-LC breakout cabling

Features

Hot-pluggable QSFP28 footprint with MPO-12 (female) receptacle
Compliant with IEEE 802.3bm 100GBASE-SR4
Four-lane 4 × 25.78125 Gbps (NRZ) design; 100 Gbps aggregate
850 nm VCSEL array transmitter and PIN photodiode array receiver
Parallel multimode fiber over 8-fiber MPO-12; up to 70 m (OM3) / 100 m (OM4)
Average launch power −8.4 to +2.4 dBm per lane; stressed receiver sensitivity −5.2 dBm (OMA) per lane
RS-FEC required for full-reach operation
Real-time Digital Diagnostic Monitoring (DDM/DOM) per SFF-8636
Single +3.3V power supply with low power dissipation (< 2.5 W)
QSFP28 MSA compliant, RoHS-6 compliant, and Class 1 laser eye safety certified (IEC/EN 60825-1)
100% compatible with and programmed for the target OEM platform
Backed by a FluxLight lifetime warranty

Absolute Maximum Rating

The operation in excess of any absolute maximum ratings might cause permanent damage to this module.

Parameter	Symbol	Min	Max	Unit
Storage Temperature	TS	-40	85	°C
Power Supply Voltage	VCC	0	3.6	V
Relative Humidity	RH	15	85	%

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Operating Case Temperature	TOP	0		70	°C
Supply Voltage	VCC	3.135	3.3	3.465	V
Data Rate (Each Lane)	DR		25.78125		Gb/s
Power Consumption	PC		1.5	2.5	W
Link Distance with OM3	D			70	m	Require RS-FEC in host platform
Link Distance with OM4	D			100	m	Require RS-FEC in host platform

Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min	Typical	Max	Unit
Differential Data Input Swing	VIN	100		900	mV
Input Differential Impedance	Zin		100		Ω
Transmitter Disable Voltage	VD	2.0		Vcc	V
Transmitter Enable Voltage	VEN	0		0.8	V
Differential Data Output Swing	VOUT	300	600	900	mV
Output Differential Impedance	Zout		100		Ω
LOS Assert Voltage	VLOSA	2.0		Vcc	V
LOS De-assert Voltage	VLOSD	0		0.8	V

Optical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Average Output Power, each lane	POUT	-8.4		2.4	dBm
Optical Modulation Amplitude, each lane	OMA	-6.4		3	dBm
Extinction Ratio	ER	2			dB
Average Output Power (Laser Off)	POFF			-30	dBm
Center Wavelength	λ	840	850	860	nm
RMS Spectral Width	σλ			0.6	nm
Optical Return Loss Tolerance	ORLT			12	dB
Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3}, Hit ratio 1.5×10⁻³ hits/sample			{0.3, 0.38, 0.45, 0.35, 0.41, 0.5}
Receiver
Average Receive Power, each lane	Pin	-10.3		2.4	dBm
Unstressed Receiver Sensitivity (OMA), each lane	Sen			-7.2	dBm	BER = 5E-5, measured with PRBS 2³¹−1 at 25.78Gb/s
Stressed Receiver Sensitivity (OMA), each lane	SRS			-5.2	dBm	Per IEEE 802.3bm; conformance test signal, BER 5E-5 with RS-FEC
Receiver Damage Threshold, per Lane	PRdmg	3.4			dBm
Center Wavelength	λ	840	850	860	nm
Receiver Reflectance	RFL			-12	dB
LOS Assert	LOSA			-30	dBm
LOS De-Assert	LOSD			-13	dBm
LOS Hysteresis	LOSH	0.5	2	6	dB

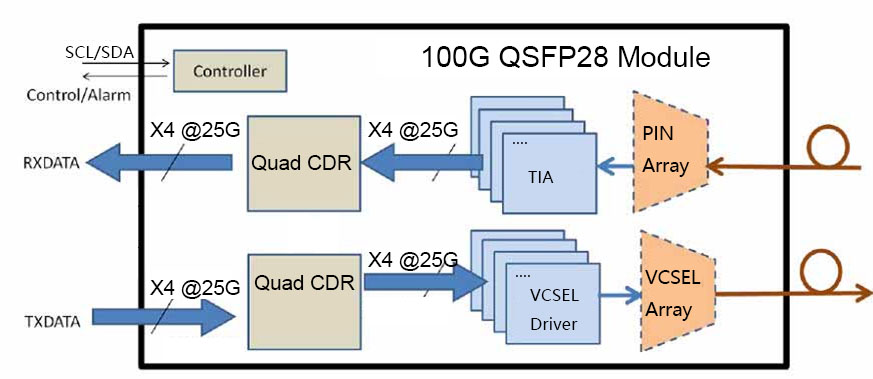

Block Diagram of Transceiver

Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.

Parameter	Symbol	Min	Max	Unit
Temperature monitor absolute error	DMI_Temp	-5	5	°C
Supply voltage monitor absolute error	DMI_VCC	-0.1	0.1	V
Channel RX power monitor absolute error	DMI_RX_Ch	-3	3	dB
Channel Bias current monitor	DMI_Ibias_Ch	-10%	10%	mA
Channel TX power monitor absolute error	DMI_TX_Ch	-3	3	dB

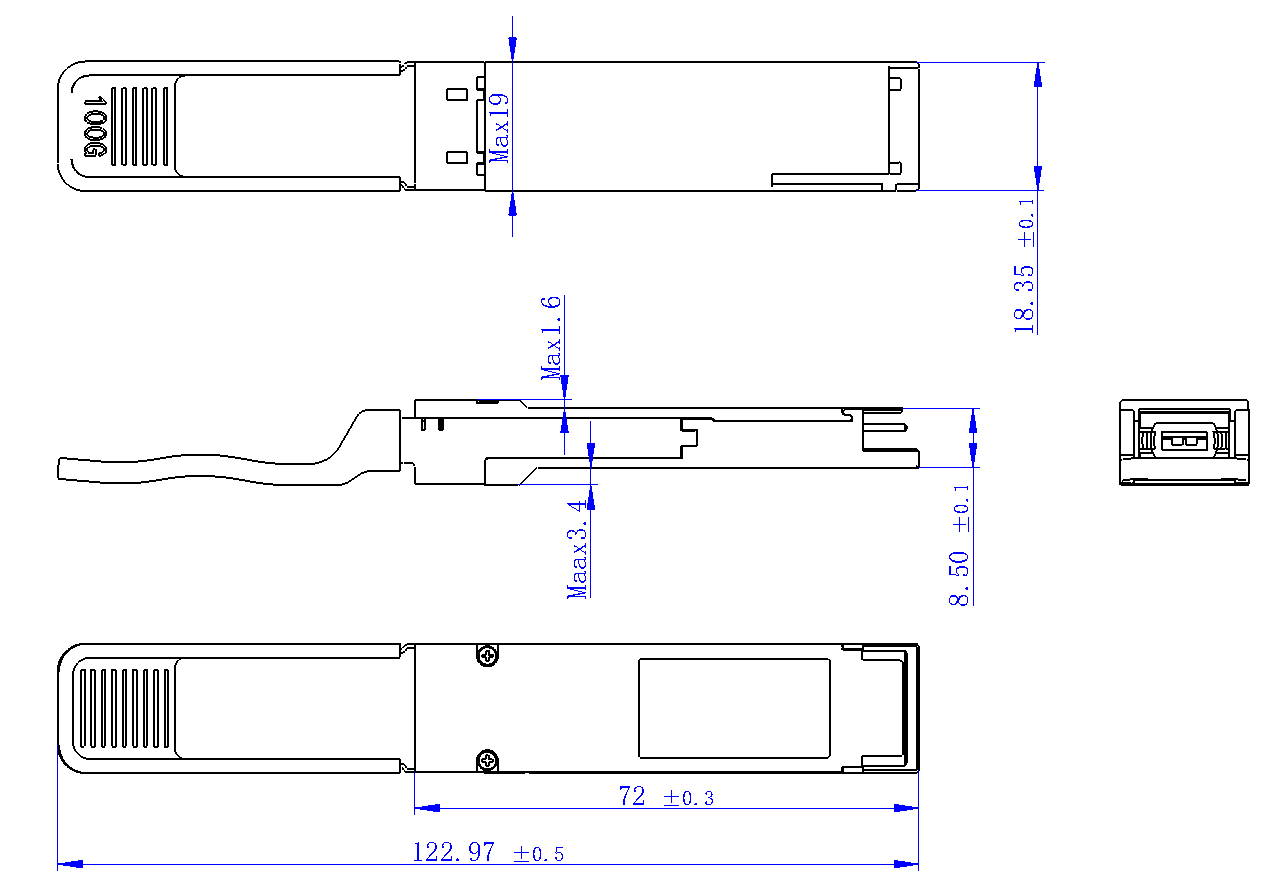

Mechanical Dimensions

Units: mm

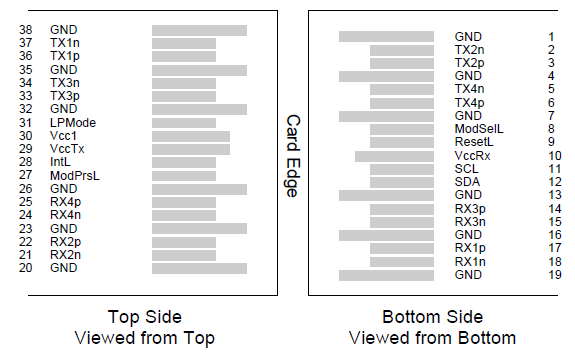

Pin Assignment and Description

Pin	Logic	Symbol	Description	Plug Sequence
1		GND	Ground	1
2	CML-I	Tx2n	Transmitter Inverted Data Input	3
3	CML-I	Tx2p	Transmitter Non-Inverted Data Input	3
4		GND	Ground	1
5	CML-I	Tx4n	Transmitter Inverted Data Input	3
6	CML-I	Tx4p	Transmitter Non-Inverted Data Input	3
7		GND	Ground	1
8	LVTTL-I	ModSelL	Module Select	3
9	LVTTL-I	ResetL	Module Reset	3
10		VccRx	+3.3V Power Supply Receiver	2
11	LVCMOS-I/O	SCL	2-Wire Serial Interface Clock	3
12	LVCMOS-I/O	SDA	2-Wire Serial Interface Data	3
13		GND	Ground	1
14	CML-O	Rx3p	Receiver Non-Inverted Data Output	3
15	CML-O	Rx3n	Receiver Inverted Data Output	3
16		GND	Ground	1
17	CML-O	Rx1p	Receiver Non-Inverted Data Output	3
18	CML-O	Rx1n	Receiver Inverted Data Output	3
19		GND	Ground	1
20		GND	Ground	1
21	CML-O	Rx2n	Receiver Inverted Data Output	3
22	CML-O	Rx2p	Receiver Non-Inverted Data Output	3
23		GND	Ground	1
24	CML-O	Rx4n	Receiver Inverted Data Output	3
25	CML-O	Rx4p	Receiver Non-Inverted Data Output	3
26		GND	Ground	1
27	LVTTL-O	ModPrsL	Module Present	3
28	LVTTL-O	IntL	Interrupt	3
29		VccTx	+3.3V Power Supply Transmitter	2
30		Vcc1	+3.3V Power Supply	2
31	LVTTL-I	LPMode	Low Power Mode	3
32		GND	Ground	1
33	CML-I	Tx3p	Transmitter Non-Inverted Data Input	3
34	CML-I	Tx3n	Transmitter Inverted Data Input	3
35		GND	Ground	1
36	CML-I	Tx1p	Transmitter Non-Inverted Data Input	3
37	CML-I	Tx1n	Transmitter Inverted Data Input	3
38		GND	Ground	1

ESD

This transceiver is specified as an ESD threshold of 1kV for the high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 / JESD22-A114-A (Human Body Model). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD-protective packaging. It should be removed from the packaging and handled only in an ESD-protected environment.

Laser Safety

This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).

The FluxLight QSFP-100G-SR4-A-FL is compatible with the Arista QSFP-100G-SR4, which Arista certifies on all its platforms. It works in any Arista switch port that takes the QSFP-100G-SR4, running EOS 4.15.2 or later.

FluxLight's Full Line of 10GBase-SR Transceivers

Licensing

The following is a list of Finisar Corporation patents Fluxlight has licensed. This licensure recognizes and compensates Finisar for their intellectual property. The QSFP-100G-SR4-A-FL, like all Fluxlight optical transceivers, is covered by this license agreement. Therefore, Fluxlight customers can rest assured that all products purchased are fully licensed, and our customers are under no potential liability that may ensue from the use of unlicensed optical transceiver products.

U.S. Patent Numbers: 7,184,668 (System and method of protecting eye safety during operation of a fiber optic transceiver), 7,079,775 (Integrated memory mapped controller circuit for fiber optics transceiver), 6,957,021 (Optical transceiver with memory mapped locations), 7,058,310 (System and method for protecting eye safety during operation of a fiber optic transceiver), 6,952,531 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,162,160 (System and method for protecting eye safety during operation of a fiber optic transceiver), 7,050,720 (Integrated memory mapped controller circuit for fiber optics transceiver)

Original Equipment Manufacturer (OEM) names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for cross reference/comparative purposes only.

Warranty

This part is covered by our Limited Lifetime Warranty, a 10-year serviceable lifetime, and our 30-Day Money-Back Guarantee. Read the full warranty and return terms.
