QFX-QSFP-40G-SR4-FLT
40G · QSFP+ · 850nmMMF · 150m · MPO
$130.00
QFX-QSFP-40G-SR4-FLT, Juniper QFX-QSFP-40G-SR4 Compatible 40GBase-SR4 QSFP+ 850nm 150m DOM MPO MMF TAA Optical Transceiver ModuleLoading...
Juniper Compatible
QFX-QSFP-40G-SR4-FL Juniper QFX-QSFP-40G-SR4 Compatible 40GBase-SR4 QSFP+ 850nm 150m DOM MPO MMF Optical Transceiver Module
- Guaranteed compatible with Juniper
- 10-year warranty
- 30-day money-back guarantee
Need a larger quantity? Request a quote
Questions? Call (888) 874-7574
Quick Specs
- Rate Category
- 40G
- Form Factor
- QSFP+
- Interface Type
- 40GBASE-SR4
- Standard/Protocol
- IEEE 802.3ba 40GBASE-SR4
- TX Wavelength
- 850nm
- RX Wavelength
- 850nm
- Cable Type
- MMF
- Reach
- 100m (OM3), 150m (OM4)
- DDM
- Supported
- Connector Type
- MPO-12 (Female, Flat/
PC) - Power Consumption
- 1.5W max
- Operating Temperature
- 0°C to +70°C (COM)
Overview
FluxLight's QFX-QSFP-40G-SR4-FL is a Juniper® compatible 40GBase QSFP+ Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. This transceiver has a QSFP+ MPO connector and performs identically to Juniper® original transceivers. It's also 100% compatible with other OEM and third party transceivers. The QFX-QSFP-40G-SR4-FL Juniper fiber optical transceiver is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
Applications
- 40 Gigabit Ethernet over parallel multimode fiber
- Data center short-reach interconnect (spine-leaf, ToR/EoR, switch-to-switch)
- High-density 40G switch and router uplinks / aggregation
- 4 × 10G breakout to 10GBASE-SR (SFP+) via MPO-to-LC breakout cabling
Features
- Hot-pluggable QSFP+ footprint with MPO-12 (female) receptacle
- Compliant with IEEE 802.3ba 40GBASE-SR4
- Four-lane 4 × 10.3125 Gb/s design; 40 Gb/s aggregate
- 850 nm VCSEL array transmitter and PIN photodiode array receiver
- Parallel multimode fiber over 8-fiber MPO-12; up to 100 m (OM3) / 150 m (OM4)
- Average launch power −7.6 to +2.4 dBm per lane; receiver sensitivity −9.5 dBm (OMA) per lane
- Real-time Digital Diagnostic Monitoring (DDM/DOM) per SFF-8436
- Single +3.3V power supply, power dissipation < 1.5 W
- Operating case temperature: 0°C to +70°C (COM)
- QSFP+ MSA compliant, RoHS-6 compliant, and Class 1 laser eye safety certified (IEC/EN 60825-1)
- 100% compatible with and programmed for the target OEM platform
- Backed by a FluxLight lifetime warranty
Absolute Maximum Rating
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | TS | -40 | 85 | °C |
| Power Supply Voltage | VCC | 0 | 3.6 | V |
| Relative Humidity | RH | 0 | 85 | % |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Operating Case Temperature | TOP | 0 | 70 | °C | ||
| Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
| Data Rate (Each Lane) | DR | 10.3125 | Gb/s | |||
| Power Consumption | PC | 1.5 | W | |||
| Link Distance with OM3 | D | 100 | m | Per IEEE 802.3ba 40GBASE-SR4 | ||
| Link Distance with OM4 | D | 150 | m | Per IEEE 802.3ba 40GBASE-SR4 |
Electrical Characteristics
The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Differential Data Input Swing | VIN | 100 | 900 | mV | |
| Input Differential Impedance | Zin | 100 | Ω | ||
| Transmitter Disable Voltage | VD | 2.0 | Vcc | V | |
| Transmitter Enable Voltage | VEN | 0 | 0.8 | V | |
| Differential Data Output Swing | VOUT | 300 | 600 | 900 | mV |
| Output Differential Impedance | Zout | 100 | Ω | ||
| LOS Assert Voltage | VLOSA | 2.0 | Vcc | V | |
| LOS De-assert Voltage | VLOSD | 0 | 0.8 | V |
Optical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Transmitter | ||||||
| Average Output Power, each lane | POUT | -7.6 | 2.4 | dBm | ||
| Optical Modulation Amplitude, each lane | OMA | -5.6 | 3 | dBm | ||
| Extinction Ratio | ER | 3 | dB | |||
| Average Output Power (Laser Off) | POFF | -30 | dBm | |||
| Center Wavelength | λ | 840 | 850 | 860 | nm | |
| RMS Spectral Width | σλ | 0.65 | nm | Per IEEE 802.3ba 40GBASE-SR4 | ||
| Receiver | ||||||
| Average Receive Power, each lane | Pin | -9.5 | 2.4 | dBm | ||
| Unstressed Receiver Sensitivity (OMA), each lane | Sen | -9.5 | dBm | Measured at 10.3125 Gb/s, PRBS 2³¹−1 | ||
| Stressed Receiver Sensitivity (OMA), each lane | SRS | -5.4 | dBm | Per IEEE 802.3ba 40GBASE-SR4 | ||
| Receiver Damage Threshold, per Lane | PRdmg | 3.4 | dBm | |||
| Center Wavelength | λ | 840 | 850 | 860 | nm | |
| LOS Assert | LOSA | -30 | dBm | |||
| LOS De-Assert | LOSD | -12 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 6 | dB | ||
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -5 | 5 | °C |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | 0.1 | V |
| Channel RX power monitor absolute error | DMI_RX_Ch | -3 | 3 | dB |
| Channel bias current monitor absolute error | DMI_Ibias_Ch | -10% | 10% | mA |
| Channel TX power monitor absolute error | DMI_TX_Ch | -3 | 3 | dB |

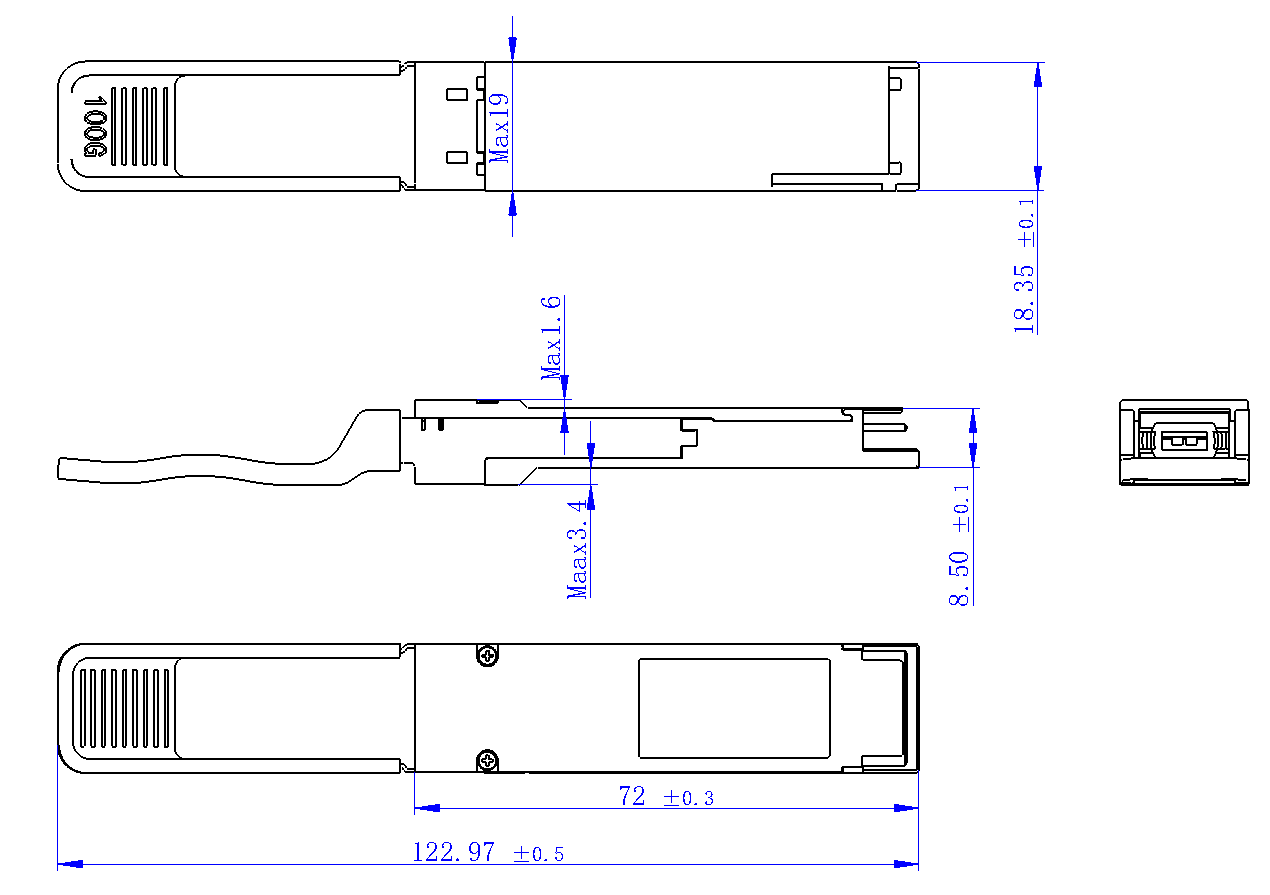

Mechanical Dimensions
Units: mm

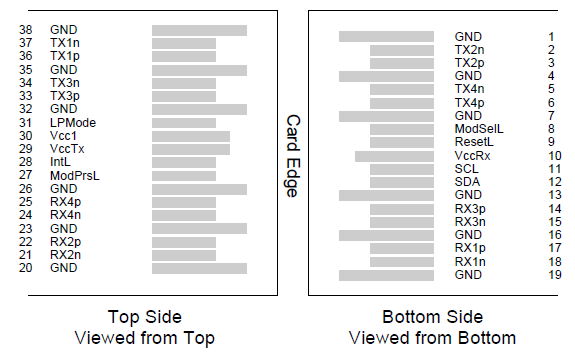

Pin Assignment and Description
| Pin | Logic | Symbol | Description | Plug Sequence |
|---|---|---|---|---|
| 1 | GND | Ground | 1 | |
| 2 | CML-I | Tx2n | Transmitter Inverted Data Input | 3 |
| 3 | CML-I | Tx2p | Transmitter Non-Inverted Data Input | 3 |
| 4 | GND | Ground | 1 | |
| 5 | CML-I | Tx4n | Transmitter Inverted Data Input | 3 |
| 6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input | 3 |
| 7 | GND | Ground | 1 | |
| 8 | LVTTL-I | ModSelL | Module Select | 3 |
| 9 | LVTTL-I | ResetL | Module Reset | 3 |
| 10 | VccRx | +3.3V Power Supply Receiver | 2 | |
| 11 | LVCMOS-I/O | SCL | 2-Wire Serial Interface Clock | 3 |
| 12 | LVCMOS-I/O | SDA | 2-Wire Serial Interface Data | 3 |
| 13 | GND | Ground | 1 | |
| 14 | CML-O | Rx3p | Receiver Non-Inverted Data Output | 3 |
| 15 | CML-O | Rx3n | Receiver Inverted Data Output | 3 |
| 16 | GND | Ground | 1 | |
| 17 | CML-O | Rx1p | Receiver Non-Inverted Data Output | 3 |
| 18 | CML-O | Rx1n | Receiver Inverted Data Output | 3 |
| 19 | GND | Ground | 1 | |
| 20 | GND | Ground | 1 | |
| 21 | CML-O | Rx2n | Receiver Inverted Data Output | 3 |
| 22 | CML-O | Rx2p | Receiver Non-Inverted Data Output | 3 |
| 23 | GND | Ground | 1 | |
| 24 | CML-O | Rx4n | Receiver Inverted Data Output | 3 |
| 25 | CML-O | Rx4p | Receiver Non-Inverted Data Output | 3 |
| 26 | GND | Ground | 1 | |
| 27 | LVTTL-O | ModPrsL | Module Present | 3 |
| 28 | LVTTL-O | IntL | Interrupt | 3 |
| 29 | VccTx | +3.3V Power Supply Transmitter | 2 | |
| 30 | Vcc1 | +3.3V Power Supply | 2 | |
| 31 | LVTTL-I | LPMode | Low Power Mode | 3 |
| 32 | GND | Ground | 1 | |
| 33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input | 3 |
| 34 | CML-I | Tx3n | Transmitter Inverted Data Input | 3 |
| 35 | GND | Ground | 1 | |
| 36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input | 3 |
| 37 | CML-I | Tx1n | Transmitter Inverted Data Input | 3 |
| 38 | GND | Ground | 1 |
ESD
This transceiver is specified as an ESD threshold of 1kV for the high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 / JESD22-A114-A (Human Body Model). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD-protective packaging. It should be removed from the packaging and handled only in an ESD-protected environment.
Laser Safety
This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
